| 型 号 |
IGBT 等级 |
信号通道
& 驱动功率 |
门极电流 |
各厂家IGBT所配驱动器 |
| Iinfineon |
Fuji |
Mitsubishi |
| SCALE-1 Plug-and-play Drivers |

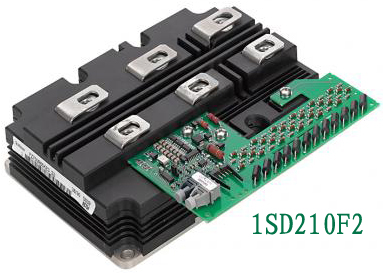

| 1SD210F2 |
4.5kV- 6.5 kV 200A-1200 A |
1*2W |
-6A/+10A |
Iinfineon：1SD210F2-Fx200R65KF2 1SD210F2-Fx400R65KF2
1SD210F2-FZ600R65KF2 1SD210F2-FZ250R65KE3
1SD210F2-FZ500R65KE3 1SD210F2-FZ600R65KE3 1SD210F2-FZ750R65KE3
Mitsubishi：1SD210F2-CM200HG-130H 1SD210F2-CM600HG-130H |

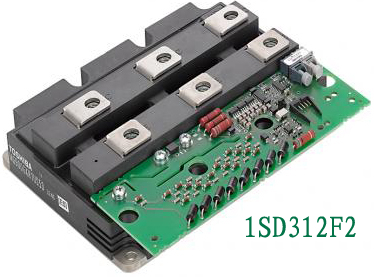

| 1SD312F2 |
4.5kV
400A-1200 A |
1*3W |
+12A |
Mitsubishi：1SD312F2-CM400HB-90H 1SD312F2-CM600HB-90H 1SD312F2-CM900HB-90H 1SD312F2-CM900HC-90H 1SD312F2-CM1200HC-90R |
| 1SD418F2 |
1.7 kV-3.3kV 800 A- 2400 A |
1*4W |
±18A |
Iinfineon：1SD418F2-FZ2400R17KF6 1SD418F2-FX800R33KF2
1SD418F2-FZ1200R33KF2 1SD418F2-FZ1200R33KL2C
Mitsubishi：1SD418F2-CM1200HC-50H 1SD418F2-CM1200HB-66H
1SD418F2-CM1200HC-66H 1SD418F2-CM800E2C-66H |

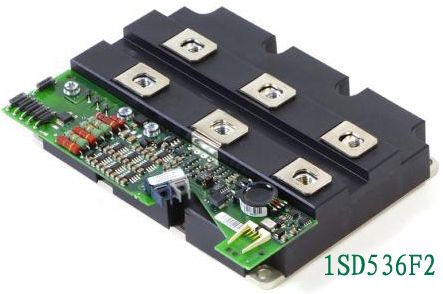

| 1SD536F2 |
1.2 kV to 3.3 kV 400 A to 3600 A |
1*5W |
±36A |
Iinfineon：1SD536F2-FZ2400R12KE3 1SD536F2-FZ3600R12KE3
1SD536F2-FD1200R17KE3-K_B2 1SD536F2-FZ1600R17HP4_B2
1SD536F2-FZ1600R17KE3 1SD536F2-FZ1600R17KE3_B2
1SD536F2-FZ2400R17HP4_B2 1SD536F2-FZ2400R17HP4_B29
1SD536F2-FZ2400R17KE3 1SD536F2-FZ2400R17KF6
1SD536F2-FZ3600R17KE3 1SD536F2-FD1000R33HE3-K
1SD536F2-FD400R33KF2C 1SD536F2-FX800R33KF2
1SD536F2-FX800R33KF2 1SD536F2-FZ1000R33HL3
1SD536F2-FZ1200R33KF2 1SD536F2-FZ1200R33KL2C
1SD536F2-FZ1500R33HE3 1SD536F2-FZ1500R33HL3
Fuji：1SD536F2-1MBI1200U4C-120 1SD536F2-1MBI1600U4C-120
1SD536F2-1MBI3600U4D-120 1SD536F2-1MBI1200U4C-170
1SD536F2-1MBI1600U4C-170 1SD536F2-1MBI2400U4D-170
1SD536F2-1MBI3600U4D-170
Mitsubishi：1SD536F2-CM1200E4C-34N 1SD536F2-CM1800HC-34N
1SD536F2-CM2400HC-34N 1SD536F2-CM2400HCB-34N
1SD536F2-CM1200HC-50H 1SD536F2-CM1200HB-66H
1SD536F2-CM1200HC-66H 1SD536F2-CM1500HC-66R
1SD536F2-CM800E2C-66H 1SD536F2-CM800HB-66H
1SD536F2-CM800HC-66H |

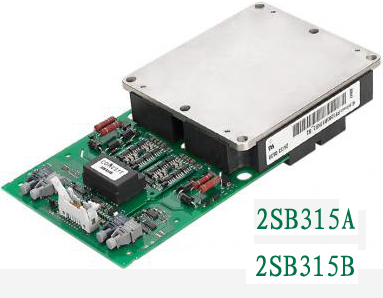

| 2SB315A |
1.2 kV to 1.7 kV 800 A to 1200 A |
2*3W |
±15A |
Iinfineon：2SB315A-FF800R12KE3
2SB315A-FF1200R17KE3_B2 2SB315A-FF800R17KF6
Fuji：2SB315A-2MBI800U4G-120
2SB315A-2MBI800U4G-170 2SB315A-2MBI800VT-170E
Mitsubishi：2SB315A-CM1200DC-34N 2SB315A-CM800DZ-34H |
| 2SB315B |
1.2kV - 1.7kV 800A - 1200A |
2*3W |
±15A |
Iinfineon：2SB315B-FF800R12KE3
2SB315B-FF1200R17KE3_B2 2SB315B-FF800R17KF6
Fuji：2SB315B-2MBI800U4G-120
2SB315B-2MBI1200U4G-170 2SB315B-2MBI800U4G-170
Mitsubishi：2SB315B-CM1200DC-34N 2SB315B-CM800DZ-34H |

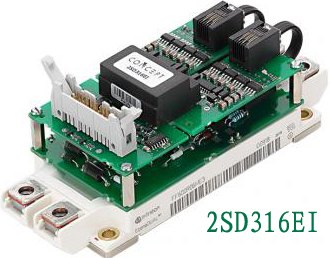

| 2SD316EI |
1.2kV - 1.7kV
150A - 450A |
2*3W |
+16A/-6A |
Iinfineon：2SD316EI-12 with DB01-FF150R12ME3G
2SD316EI-12 with DB01-FF225R12ME3
2SD316EI-12 with DB01-FF300R12ME3
2SD316EI-12 with DB01-FF450R12ME3
2SD316EI-12 with DB01-FF450R12ME4
2SD316EI-17 with DB01-FF150R17ME3G
2SD316EI-17 with DB01-FF300R17ME3
2SD316EI-17 with DB01-FF450R17ME3 |
| 6SD312EI |
1.2 kV - 1.7 kV
150A - 450A |
6*3W |
+12 A / -6 A |
Fuji： 6SD312EI-12 with EB01-6MBI225U4-120
6SD312EI-17 with EB01-6MBI450U4-170
Iinfineon：6SD312EI-12 with EB01-FS150R12KE3G
6SD312EI-12 with EB01-FS225R12KE3
6SD312EI-12 with EB01-FS300R12KE3
6SD312EI-12 with EB01-FS450R12KE3
6SD312EI-12 with EB01-FS450R12KE4
6SD312EI-17 with EB01-FS150R17KE3G
6SD312EI-17 with EB01-FS300R17KE3
6SD312EI-17 with EB01-FS450R17KE3 |
| SCALE-2 Plug-and-play Drivers |
1SP0335
|
3.3 kV - 6.5 kV
250A - 1200A |
1*23W |
±35A |
各厂家通用：1SP0335x2xx-33 1SP0335x2xx-45 1SP0335x2xx-65
Iinfineon：1SP0335x2xx-FZ800R33KL2C_B5
1SP0335x2xx-FZ1200R33KL2C_B5 1SP0335x2xx-FZ1200R45KL3_B5
1SP0335x2xx-FZ200R65KF2 1SP0335x2xx-FZ250R65KE3
1SP0335x2xx-FZ400R65KF2 1SP0335x2xx-FZ500R65KE3
1SP0335x2xx-FZ600R65KE3 1SP0335x2xx-FZ750R65KE3
1SP0335D2Sx-FZ750R65KE3
Mitsubishi：1SP0335x2xx-CM600HG-90H
1SP0335x2xx-CM900HG-90H
1SP0335x2xx-CM1200HG-90R 1SP0335x2xx-CM750HG-130R |
| 1SP0340 |
4.5 kV |
1*1.3W |
±35A |
各厂家通用：1SP0340x2xx-45 |
| 1SP0635 |
1.2kV - 3.3kV
800A - 3600A |
1*3W |
±35A |
各厂家通用：1SP0635x2xx-12 1SP0635x2xx-17 1SP0635x2xx-33
Iinfineon：1SP0635x2xx-FZ1200R12HP4 1SP0635x2xx-FZ2400R12HP4
1SP0635x2xx-FZ3600R12HP4 1SP0635x2xx-FZ1800R17HP4_B29
1SP0635x2xx-FZ3600R17HP4 1SP0635x2xx-FZ1000R33HE3
1SP0635x2xx-FZ1000R33HL3 1SP0635x2xx-FZ1200R33HE3
1SP0635x2xx-FZ1200R33KF2C 1SP0635x2xx-FZ1500R33HE3
1SP0635x2xx-FZ1500R33HL3
Fuji：1SP0635x2xx-1MBI1600VR-170E
1SP0635x2xx-1MBI800UG-330 1SP0635x2xx-1MBI1200UE-330
1SP0635x2xx-1MBI1500UE-330
Mitsubishi：1SP0635x2xx-CM800HC-66H
1SP0635x2xx-CM1000HC-66R 1SP0635x2xx-CM1200HC-66H
1SP0635x2xx-CM1500HC-66R |
| 2SP0115T |
600V - 1700V
150A - 600A |
2*1W |
+15A/-8A |
各厂家通用：2SP0115T2Ax-06 2SP0115T2Ax-12 2SP0115T2Ax-17
Iinfineon：2SP0115T2Ax-FF450R06ME3
2SP0115T2Ax-FF600R06ME3 2SP0115T2Ax-FF150R12ME3G
2SP0115T2Ax-FF225R12ME4 2SP0115T2Ax-FF300R12ME3
2SP0115T2Ax-FF300R12ME4 2SP0115T2Ax-FF450R12ME3
2SP0115T2Ax-FF450R12ME4 2SP0115T2Ax-FF600R12ME4
2SP0115T2Ax-FF225R17ME4 2SP0115T2Ax-FF300R17ME3
2SP0115T2Ax-FF300R17ME4 2SP0115T2Ax-FF450R17ME3
2SP0115T2Ax-FF450R17ME4 2SP0115T2Ax-FF600R17ME4
Fuji：2SP0115T2Ax-2MBI225VN-120-50 2SP0115T2Ax-2MBI300VN-120-50
2SP0115T2Ax-2MBI450VN-120-50 2SP0115T2Ax-2MBI600VN-120-50
2SP0115T2Ax-2MBI300VN-170-50 2SP0115T2Ax-2MBI450U4N-170-50
2SP0115T2Ax-2MBI450VN-170-50 2SP0115T2Ax-2MBI550VN-170-50
Mitsubishi：2SP0115T2Ax-CM200DX-24S
2SP0115T2Ax-CM300DX-24S 2SP0115T2Ax-CM450DX-24S |

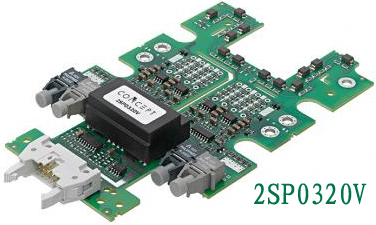

| 2SP0320 |
1200V - 1700V
450A -1400A |
2*2W |
±25A |
各厂家通用：2SP0320x2Ax-12 2SP0320x2Bx-12 2SP0320x2Ax-17
Iinfineon：2SP0320x2Ax-FF450R12IE4
2SP0320x2Ax-FF600R12IE4 2SP0320x2Ax-FF900R12IE4
2SP0320x2Ax-FF900R12IP4 2SP0320x2Ax-FF1400R12IP4
2SP0320x2Ax-FF450R17IE4 2SP0320x2Ax-FF650R17IE4
2SP0320x2Ax-FF650R17IE4D_B2 2SP0320x2Ax-FF1000R17IE4
2SP0320x2Ax-FF1000R17IE4D_B2 2SP0320x2Ax-FF1400R17IP4
Fuji： 2SP0320x2Ax-2MBI900VXA-120E-50
2SP0320x2Ax-2MBI900VXA-120P-50 2SP0320x2Ax-2MBI1400VXB-120P-50
2SP0320x2Ax-2MBI650VXA-170E-50 2SP0320x2Ax-2MBI1000VXB-170E-50
2SP0320x2Ax-2MBI1400VXB-170E-50 2SP0320x2Ax-2MBI1400VXB-170P-50 |

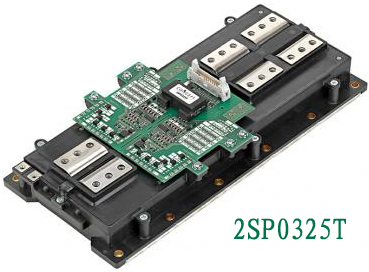

| 2SP0325 |
1200V - 1700V
1800A -2500A |
2*2W |
±25A |
Mitsubishi：2SP0325x2Ax-CM2500DY-24S 2SP0325x2Ax-CM1800DY-34S |

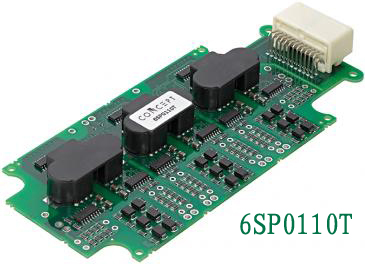

| 6SP0110T |
650V 400A |
6信道 |
±8A |
Iinfineon：6SP0110T2Bx-FS400R07A1E3 |

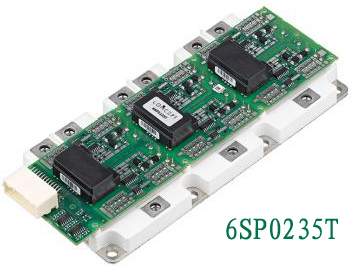

| 6SP0235T |
650V 800A |
6信道 |
±35A |
Iinfineon：6SP0235T2Ax-FS800R07A2E3 |
