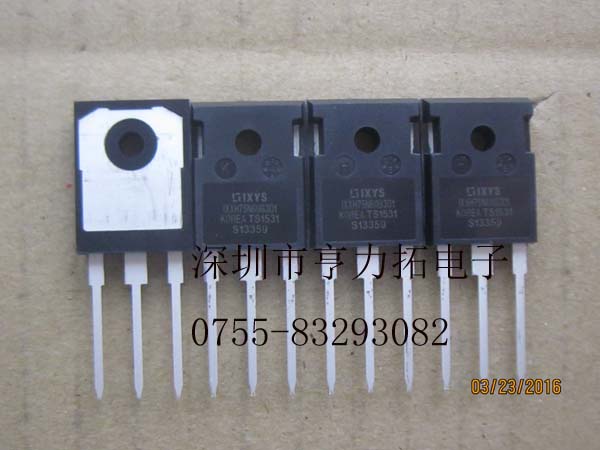

IXXH75N60B3D1 IGBT功率管IGBT 600V 160A 750W TO247
IGBT Transistors XPT 600V IGBT GenX3 XPT
| Manufacturer |
IXYS |
| Packaging |
Tube |
| IGBT Type |
PT |
| Voltage - Collector Emitter Breakdown (Max) |
600V |
| Current - Collector (Ic) (Max) |
160A |
| Current - Collector Pulsed (Icm) |
300A |
| Vce(on) (Max) @ Vge, Ic |
1.85V @ 15V, 60A |
| Power - Max |
750W |
| Switching Energy |
1.7mJ (on), 1.5mJ (off) |
| Input Type |
Standard |
| Gate Charge |
107nC |
| Td (on/off) @ 25°C |
35ns/118ns |
| Test Condition |
400V, 60A, 5 Ohm, 15V |
| Reverse Recovery Time (trr) |
25ns |
| Package / Case |
TO-247-3 |
| Mounting Type |
Through Hole |
| Supplier Device Package |
