MC79L08A中文资料

Electrical Characteristics 电气特性 (MC79L08A LM79L08A KA79L08 )
(VI =-14V, IO=40mA, CI=0.33ìF, CO=0.1μF,0℃≤TJ≤+125℃, unless otherwise specified除非另有说明)

Parameter 参数		Symbol 符号	Conditions 条件		最小	典型	最大	单位
Output Voltage输出电压		VO	TJ=+25 ℃		- 7.7	- 8.0	- 8.3	V
Line Regulation线性调整率(Note1)		ΔVO	TJ =+25 ℃	-10.3V≥VI≥-23V	-	-	175	mV
				-12V≥VI≥-23V	-	-	125	mV
Load Regulation 负载调整率 (Note1)		ΔVO	TJ =+25 ℃	1.0mA≤Io≤100mA	-	-	80	mV
				1.0mA≤Io≤40mA	-	-	40	mV
Output Voltage输出电压		VO	-10.3V≥VI≥-23V, 1.0mA≤Io≤40mA		- 7.6	-	- 8.4	V
			VI=-14V, 1.0mA≤Io≤70mA		- 7.6	-	- 8.4
Quiescent Current 静态电流		Iq	Tj =+ 25 ℃		-	-	6.0	mA
			Tj=+125 ℃		-	-	5.5
Quiescent Current Change 静态电流变化	with line	ΔIQ	-11.7V≥VI≥-23V		-	-	1.5	mA
	with load		1.0mA≤Io≤40mA		-	-	0.1	mA
Output Noise Voltage 输出噪声电压		VN	Tj=+25℃,10Hz ≤f≤100KHz		-	50	-	μV
Ripple Rejection 纹波抑制		RR	f=120Hz, -11V≥VI≥-21V Tj=+25℃		39	55	-	dB
Dropout Voltage 电压差		VD	Tj=+25℃		-	1.7	-	V

Note
1. Load and line regulation are specified at constant junction temperature. Change in VO due to heating effects must be taken
into account separately. Pulse testing with low duty is used.

极限参数：

Parameter参数		Symbol 符号	Value 数值	单位
Input Voltage输入电压	(for VO = -5V, -8V)	VI	-30	V
	(for VO = -12V to -18V)		-35
	(for VO = -24V)		-40
Operating Junction Temperature Range结温工作范围		TJ	0~ +125	℃
Storage Temperature Range储存温度范围		TSTG	-65~ +150	℃

图1 LM79LXXX引脚排列图

图2 LM79LXXX内部电路图

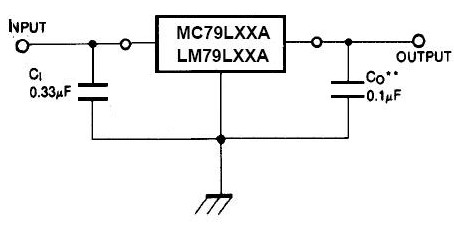

图3 LM79LXXX典型测试电路图

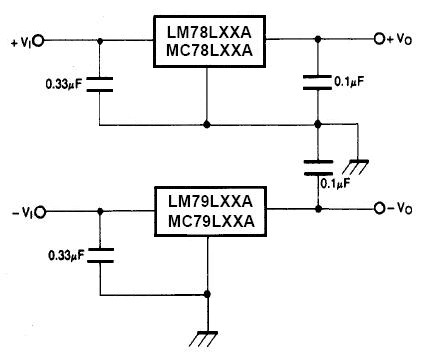

图4 正负电压对称输出电路

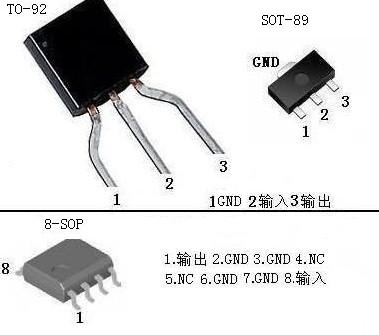

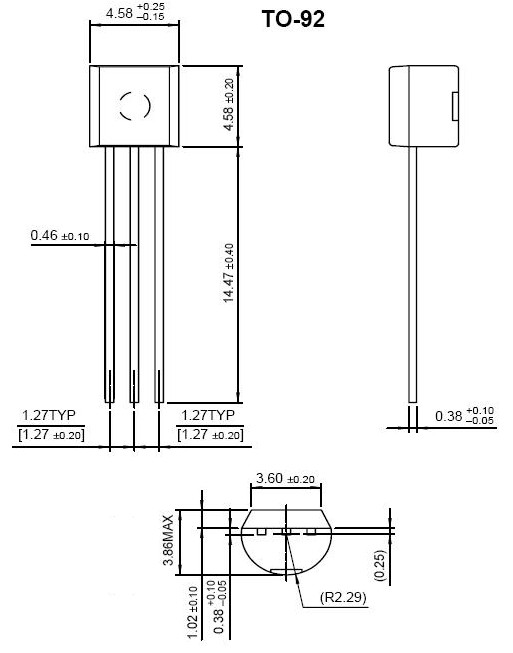

图5 LM78LXXX TO-92封装图片

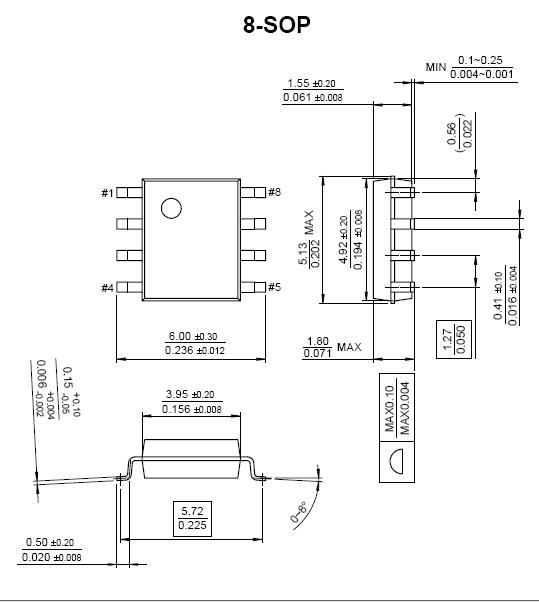

图6 LM78LXXX 8-SOP贴片封装图片

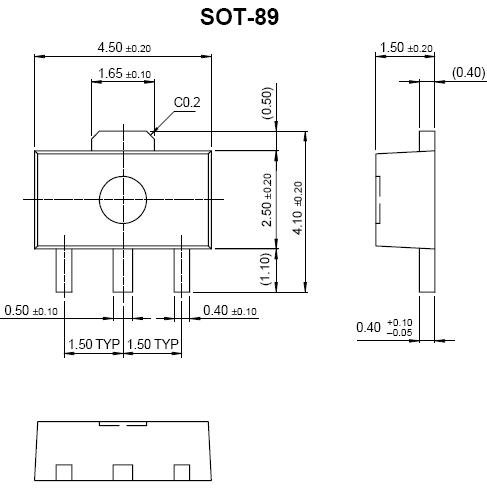

图7 LM78LXXX SOT-89贴片封装图片
