(VI = -10V, IO = 500mA, 0℃ ≤TJ ≤ +125℃, CI =2.2μF, CO =1μF, unless otherwise specified.)
Parameter 参数 |
Symbol 符号 | Conditions 条件 | 最小 | 典型 | 最大 | 单位 | |
| Output Voltage 输出电压 | VO | TJ=+25℃ | - 4.9 | - 5.0 | - 5.1 | V | |
|
IO = 5mA to 1A, PO ≤ 15W VI = -7V to -20V |
- 4.8 | -5.0 | - 5.2 | ||||
| Line Regulation 线性调整率(Note1) | ΔVO | TJ=+25℃ |
VI = -7V to -20V IO=1A |
- | 5 | 50 | mV |
|
VI = -8V to -12V IO=1A |
- | 2 | 25 | ||||
|
TJ=+25℃ , VI = -7.5V to -25V |
- | 7 | 50 | ||||
|
VI= -8V to -12V , IO=1A |
- | 7 | 50 | ||||
| Load Regulation 负载调整率(Note1) (Note1) | ΔVO |
IO = 5mA to 1.5A |
- | 10 | 100 | mV | |
|
TJ =+25℃ IO = 250mA to 750mA |
- | 3 | 50 | ||||
| Quiescent Current 静态电流 | IQ |
TJ =+25℃ |
- | 3 | 6 | mA | |
| Quiescent Current Change 静态电流变化 | ΔIQ |
IO = 5mA to 1A |
- | 0.05 | 0.5 | mA | |
|
VI = -8V to -25V |
- | 0.1 | 0.8 | ||||
| Temperature Coefficient of VD 温度系数 | ΔVo/ΔT |
IO = 5mA |
- | - 0.4 | - | mV/℃ | |
| Output Noise Voltage 输出噪声电压 | VN |
f = 10Hz to 100KHz TA =+25℃ |
- | 40 | - | μV | |
| Ripple Rejection 纹波抑制 | RR |
f = 120Hz ΔVI = 10V |
54 | 60 | - | dB | |
| Dropout Voltage 电压差 | VD |
TJ=+25℃ IO = 1A |
- | 2 | - | V | |
| Short Circuit Current 短路电流 | ISC |
TJ =+25℃, VI = -35V |
- | 300 | - | mA | |
| Peak Current 峰值电流 | IPK |
TJ =+25℃ |
- | 2.2 | - | A | |
三端稳压集成电路极限参数：
| Parameter 参数 | Symbol 符号 | Value 数值 | 单位 | |
| Input Voltage输入电压 | (for VO =5V to 18V) | VI | 35 | V |
| (for VO =24V) | VI | 40 | V | |
| Thermal Resistance Junction-Cases 热阻(结到壳) (TO-220) | RθJC | 5 | ℃/W | |
| Thermal Resistance Junction-Air热阻(结到空气) (TO-220) | RθJA | 65 | ℃/W | |
| Operating Temperature Range工作温度范围 | TOPR | 0 ~ +125 | ℃ | |
| Storage Temperature Range储存温度范围 | TSTG | -65 ~ +150 | ℃ | |

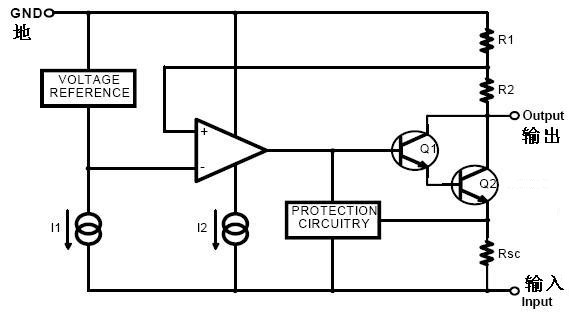

图1 79XX内部电路图
|

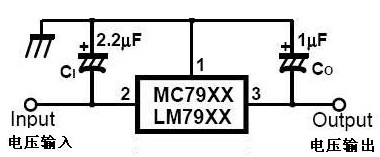

图2 外形引脚排列图管脚图 图3 79XX参照测试电路及典型电路 |
|
|
|

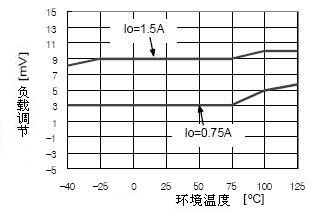

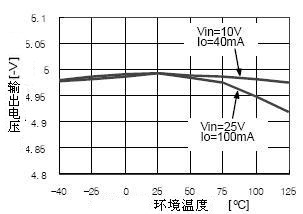

图4 输出电压 图5 负载调节率曲线图 |
|
图6 电压差曲线图 图7 静态电流曲线图

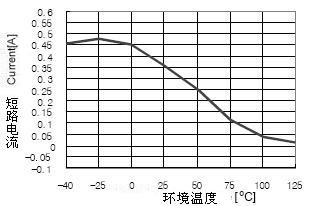

图8 短路电流曲线图

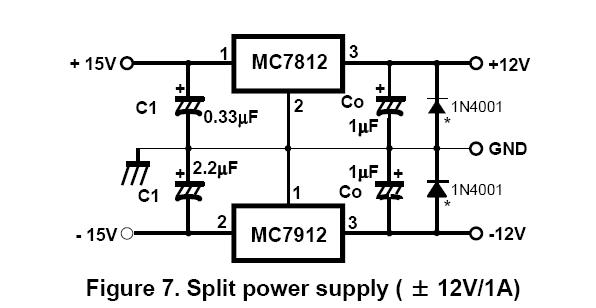

图9 与78XX系列三端稳压构成的正负对称输出电压应用电路图

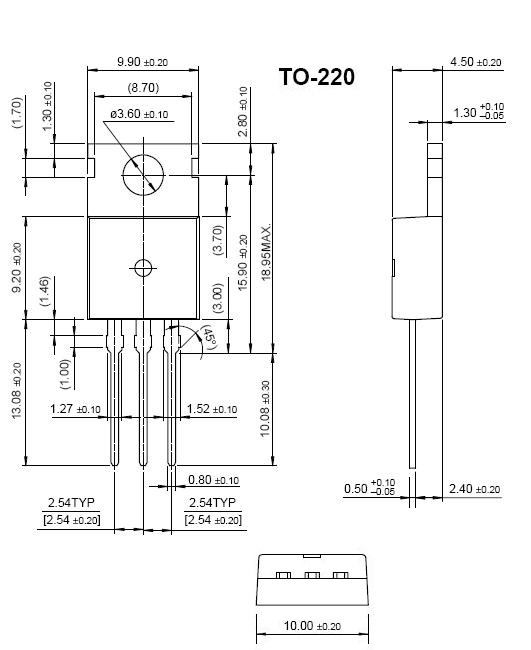

图10 TO-220封装图片 |
