Electrical Characteristics 电气特性 (MC7806)(LM7806)

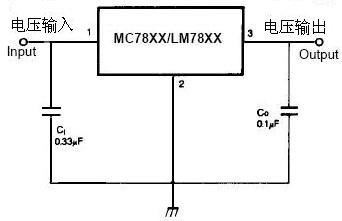

(参照测试电路 ,0°C < TJ < 125°C, IO =500mA, VI =11V, CI=0.33ìF, CO=0.1ìF, 除非另有说明)
Parameter 参数 |

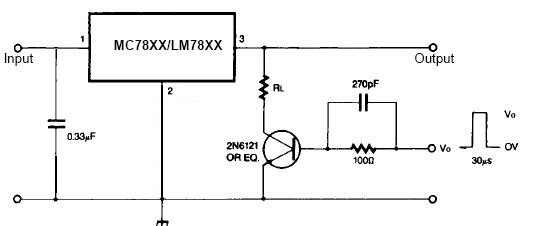

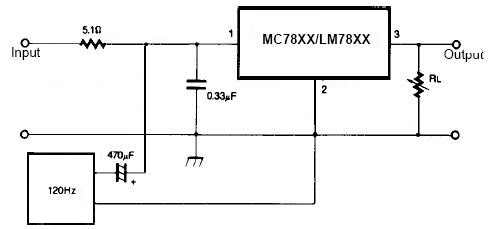

Symbol 符号 | Conditions 条件 | MC7806 | 单位 | ||||
| 最小. | 典型. | 最大. | ||||||
| Output Voltage 输出电压 | VO | TJ =+25℃ | 5.75 | 6.0 | 6.25 | V | ||
| 5.0mA ≤ IO ≤ 1.0A, PO ≤ 15W VI =8.0V to 21V | 5.7 | 6.0 | 6.3 | |||||
| Line Regulation 线性调整率 (Note1) | Regline | TJ =+25℃ | VI =8V to 25V | - | 5 | 120 | mV | |
| VI =9V to 13V | - | 1.5 | 60 | |||||
| Load Regulation 负载调整率 (Note1) | Regload | TJ =+25℃ | IO =5mA to 1.5A | - | 9 | 120 | mV | |
| IO =250mA to750A | - | 3 | 60 | |||||
| Quiescent Current 静态电流 | IQ | TJ =+25℃ | - | 5.0 | 8.0 | mA | ||
| Quiescent Current Change 静态电流变化 | ΔIQ | IO =5mA to 1A | - | - | 0.5 | mA | ||
| VI =8V to 25V | - | - | 1.3 | |||||
| Output Voltage 输出电压 Drift | ΔVO/ΔT | IO =5mA | - | -0.8 | - | mV/℃ | ||
| Output Noise Voltage 输出噪声电压 | VN | f =10Hz to 100KHz, TA =+25℃ | - | 45 | - | μV/Vo | ||
| Ripple Rejection 纹波抑制 | RR | f =120Hz VI =9V to 19V | 59 | 75 | - | dB | ||
| Dropout Voltage 电压差 | VDrop | IO =1A, TJ =+25℃ | - | 2 | - | V | ||
| Output Resistance 输出电阻 | rO | f =1KHz | - | 19 | - | mΩ | ||
| Short Circuit Current 短路电流 | ISC | VI=35V, TA=+25℃ | - | 250 | - | mA | ||
| Peak Current 峰值电流 | IPK | TJ =+25℃ | - | 2.2 | - | A | ||
三端稳压集成电路极限参数：
| Parameter 参数 | Symbol 符号 | Value | 单位 | |
| Input Voltage输入电压 | (for VO =5V to 18V) | VI | 35 | V |
| (for VO =24V) | VI | 40 | V | |
| Thermal Resistance Junction-Cases热阻(结到壳) (TO-220) | RθJC | 5 | ℃/W | |
| Thermal Resistance Junction-Air热阻(结到空气) (TO-220) | RθJA | 65 | ℃/W | |
| Operating Temperature Range工作温度范围 | TOPR | 0 ~ +125 | ℃ | |
| Storage Temperature Range储存温度范围 | TSTG | -65 ~ +150 | ℃ | |
|
| |||
|

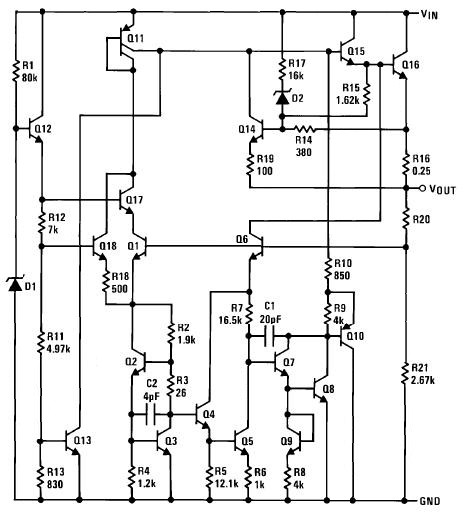

图1 78XX内部电路图 | |||
|

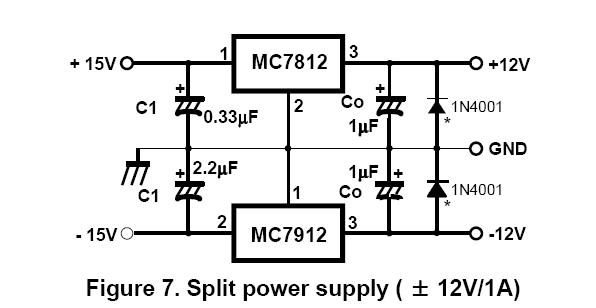

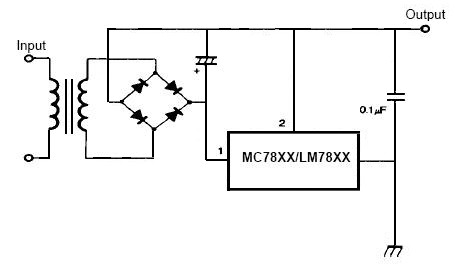

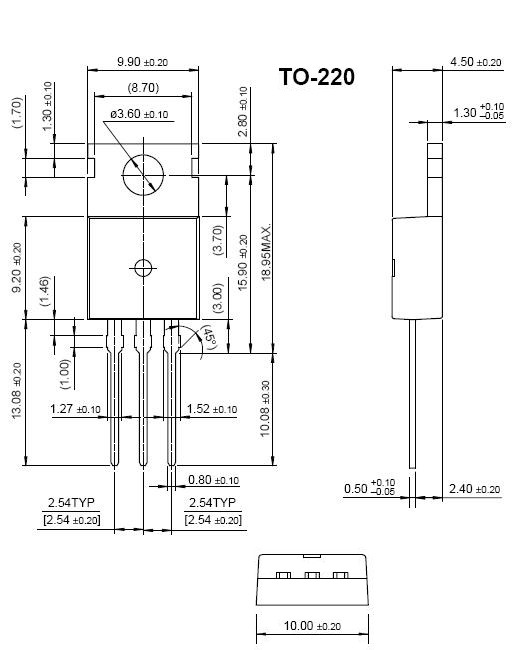

图8 TO-220封装图片 | |||
|
| |||
|
| |||
|

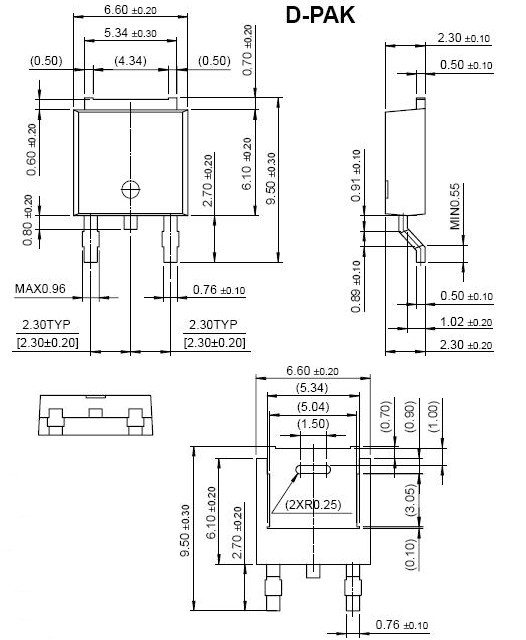

图9 D-PAK封装图 |
