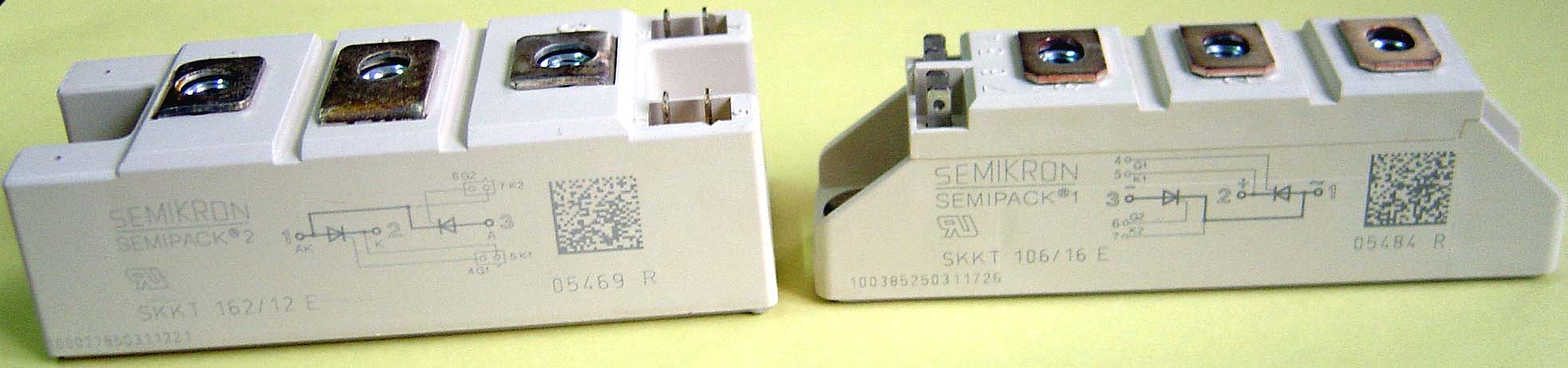

德国 SEMIKRON西门康
|
 |
● SKKT 系列双可控硅模块 |
| ● SKKH 、SKKL 系列可控硅+二极管混合模块 | ||
 |
● SKKD 系列双二极管模块 | |
| ● SKET 系列单可控硅 模块 | ||
| ● SKKE 系列单二极管 模块 | ||
| ● SKMD 、SKMT 、SKNH 特殊结构 模块 |
|
德国 SEMIKRON 可控硅 / 二极管模块 电路图 |
|
SKKT
 |
 |
 |
 |
 |
 |
 |
 |
 |
| ● SKKT 系列双可控硅模块 |
|
Part Number. |
VDRM/VRRM (V)
|
ITAV (A) |
|
Part Number. |
VDRM/VRRM (V)
|
ITAV (A) |
| SKKT15 |
600-1600 |
15 |
|
SKKT162 |
800-1800 |
160 |
| SKKT27 |
800-1800 |
27 |
SKKT162?H4 |
2000-2200 |
162 | |
| SKKT42 |
800-1800 |
40 |
SKKT172 |
1400-1800 |
172 | |
| SKKT57 |
800-2200 |
55 |
SKKT213 |
800-1800 |
213 | |
| SKKT72 |
800-2200 |
70 |
SKKT250 |
800-1800 |
250 | |
| SKKT92 |
800-1800 |
95 |
SKKT253 |
800-1800 |
253 | |
| SKKT106 |
800-1800 |
106 |
SKKT280 |
2000-2200 |
280 | |
| SKKT122 |
800-1800 |
122 |
SKKT330 |
800-1800 |
330 | |
| SKKT132 |
800-1800 |
130 |
SKKT430 |
1600-2200 |
430 | |
| SKKT132 H4 |
2000-2200 |
132 |
? |
SKKT500 |
800-1800 |
500 |
| ● SKKH 、SKKL 系列可控硅 + 二极管混合模块 |
|
Part Number. |
VDRM/VRRM (V)
|
ITAV (A) |
|
Part Number. |
VDRM/VRRM (V)
|
ITAV (A) |
| SKKH15 |
600-1600 |
15 |
|
SKKH162 |
800-1800 |
160 |
| SKKH27 |
800-1800 |
27 |
SKKH162?H4 |
2000-2200 |
162 | |
| SKKH42 |
800-1800 |
40 |
SKKH172 |
1400-1800 |
172 | |
| SKKH57 |
800-2200 |
55 |
SKKH213 |
800-1800 |
213 | |
| SKKH72 |
800-2200 |
70 |
SKKH250 |
800-1800 |
250 | |
| SKKH92 |
800-1800 |
95 |
SKKH253 |
800-1800 |
253 | |
| SKKH106 |
800-1800 |
106 |
SKKH280 |
2000-2200 |
280 | |
| SKKH122 |
800-1800 |
122 |
SKKH330 |
800-1800 |
330 | |
| SKKH132 |
800-1800 |
130 |
SKKH430 |
1600-2200 |
430 | |
| SKKH132 H4 |
2000-2200 |
132 |
? |
SKKH500 |
800-1800 |
500 |
|
SKKL?92 |
800-1800 |
95 |
|
? | ? | ? |
| ● SKKD 系列双二极管模块 |
|
Part Number. |
VRRM (V)
|
IFAV (A) |
|
Part Number. |
VRRM (V)
|
IFAV (A) |
| SKKD15 |
600-1600 |
15 |
SKKD162 |
800-2200 |
160 | |
| SKKD26 |
1200-1600 |
26 |
SKKD260 |
800-2200 |
260 | |
| SKKD46 |
400-1800 |
45 |
SKKD380 |
800-2200 |
380 | |
| SKKD81 |
400-2200 |
80 |
SKKD700 |
800-2200 |
700 | |
| SKKD100 |
400-1800 |
100 |
? | ? | ? |
| ● SKET 系列单可控硅 模块、SKKE 系列单二极管 模块 |
|
Part Number. |
VDRM/VRRM (V)
|
IFAV (A) |
circuit
|
Part Number. |
VDRM/VRRM (V)
|
IFAV (A) |
| SKET?330 |
800-2200 |
330 |
|
SKET740 |
1800-2200 |
740 |
| SKET?400 |
800-1800 |
400 |
SKET800 |
1400-1800 |
805 | |
| SKKE15 |
600-1600 |
15 |
 |
1200-1600 |
380 | |
| SKKE81 |
400-2200 |
80 |
SKKE600 |
1200-2200 |
600 | |
| SKKE162 |
800-2200 |
160 |
SKKE1200 |
1800-2200 |
1200 |
| ● SKMD 、SKMT 、SKNH 特殊结构 模块 |
|
Part Number. |
VRRM (V)
|
IFAV (A) |
|
Part Number. |
VRRM (V)
|
IFAV (A) |
| SKMD100 |
400-1800 |
100 |
|
SKMT92 |
1800-2200 |
95 |
| SKNH56 |
1200-1800 |
50 |
circuit |
|
|
|
| SKNH91 |
1200-1800 |
95 | ||||
| SKNH132 |
800-1800 |
130 | ||||
|
SKMD |
SKMT |
SKNH? |
