德国 西门康
|
 |
● SKT 系列相控可控硅（ Phase Control Thyristors ）——平板型 |
 |
● SKN 普通二极管（ Rectifier Diodes ）——平板型（适于电焊机） | |
| ● SKNxF 、 ?SKRxF 系列快速二极管（ Rectifier Diodes ）——螺栓型 |
|
Part Number |
VDRM /VRRM (V) |
ITAVM (A) |
@ TC ℃ |
Cases |
? |
 | |||
| SKT240 |
400-1800 |
240 |
93 |
B8
|
? | ||||
| SKT340 |
800-1800 |
340 |
82 |
? | |||||
| SKT491 |
400-1800 |
490 |
80 |
B11
|
? | ||||
| SKT551 |
800-1800 |
550 |
85 |
? | |||||
| SKT600 |
400-1800 |
600 |
86 |
B10
|
? | ||||
| SKT760 |
400-1800 |
760 |
80 |
? |

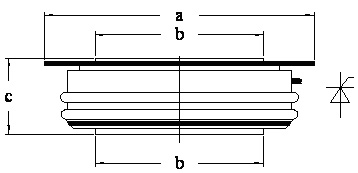

Cases |
a |
b |
c | |
| SKT1000 |
1200-2800 |
1000 |
85 |
B14
|
? |
B8 |
41 |
19 |
14 |
| SKT1200 |
1200-1800 |
1200 |
85 |
? |
B11 |
41 |
25 |
14 | |
| SKT1400 |
2600-3600 |
1400 |
66 |
B19
|
? |
B10 |
57.3 |
34 |
26 |
| SKT1800 |
1200-1600 |
1800 |
85 |
? |
B14 |
73 |
47 |
26 | |
| SKT2000 |
2200-2800 |
2000 |
75 |
B20
|
? |
B19 |
102 |
63 |
33 |
| SKT2400 |
1200-1800 |
2400 |
76 |
? |
B20 |
111 |
73 |
37 | |
| ? |
| ● SKN 普通二极管（ Rectifier Diodes ）——平板型（适于电焊机） |
|
Part Number |
VRRM (V) |
I FAVM (A) |
@ TC ℃ |
 |

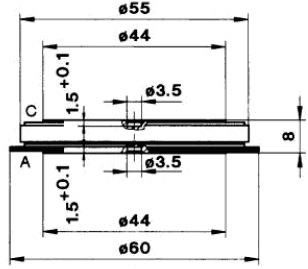

E35
 |
| SKN4000 |
200-600 |
4000 |
50 | ||
| SKN6000 |
200-600 |
6000 |
85 |
| ● SKNxF 、?SKRxF 系列快速二极管（ Rectifier Diodes ）——螺栓型 |
|
Part Number |
VDRM /VRRM (V) |
IFAVM (A) |
@ TC ℃ |
trr(ns) |
Cases |
? |
  |
E7 / E10/ E31 | |||
| SKN 2F 17 |
400-1800 |
17 |
113 |
440 |
E7 |
? | |||||
| SKR 2F 17 |
400-1800 |
17 |
113 |
440 |
? | ||||||
| SKN 3F 20 |
800-1200 |
20 |
104 |
600 |
E7 |
? | |||||
| SKR 3F 20 |
800-1200 |
20 |
104 |
600 |
? | ||||||
| SKN 2F 50 |
400-1000 |
50 |
105 |
600 |
E10 |
? | |||||
| SKR 2F 50 |
400-1000 |
50 |
105 |
600 |
? |
 E14 | |||||
| SKN 60F |
1200-1700 |
60 |
100 |
2100 |
E10 |
? | |||||
| SKR 60F |
1200-1700 |
60 |
100 |
2100 |
? | ||||||
| SKN 135F |
800-1200 |
135 |
100 |
1900 |
E14 |
? | |||||
| SKR 135F |
800-1200 |
135 |
100 |
1900 |
? | ||||||
| SKN 136F |
800-1200 |
135 |
100 |
1900 |
E31 |
? | ? | ? | ? | ? | ? |
| SKR 136F |
800-1200 |
135 |
100 |
1900 |
? |
Cases |
a |
b |
I |
SW | |
| SKN 140F |
1200-17200 |
140 |
100 |
2000 |
E14
|
? |
E7 |
M5 |
11 |
22 |
11 |
| SKR 140F |
1200-1700 |
140 |
100 |
2000 |
? |
E10 |
M6 |
11 |
21.5 |
11 | |
| SKN 141F |
1200-1700 |
140 |
100 |
2000 |
E31
|
? |
E14 |
M12 |
18 |
165 |
24 |
| SKR 141F |
1200-1700 |
140 |
100 |
2000 |
? |
E31 |
M12 |
18 |
55 |
24 | |
| SKN ：螺栓阳极 anode to stud |
| SKR ：螺栓阴极 cathode to stud |
