IKP20N60T IKW20N60T K20T60 Infineon IGBT管 IKP20N60T IKW20N60T K20T60全新到货深圳市亨力拓电子有限公司 货源电话：0755-83293082 阮先生

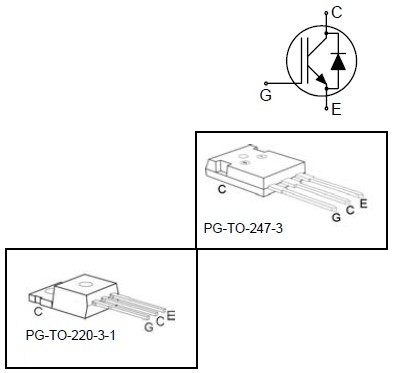

IKP20N60T IKW20N60T K20T60 Infineon IGBT管 TO-220 TO-247
IKP20N60T IKW20N60T K20T60 Infineon IGBT管
IKP20N60T IKW20N60T K20T60 Infineon IGBT管 大批量到货
IKP20N60T IKW20N60T K20T60 Infineon IGBT管
Low Loss DuoPack : IGBT in TrenchStop® and Fieldstop technology
with soft, fast recovery anti-parallel EmCon HE diode
• Very low VCE(sat) 1.5 V (typ.)
• Maximum Junction Temperature 175 °C
• Short circuit withstand time – 5μs
• Designed for :
- Frequency Converters
- Uninterrupted Power Supply
• TrenchStop® and Fieldstop technology for 600 V applications
offers :
- very tight parameter distribution
- high ruggedness, temperature stable behavior
- very high switching speed
- low VCE(sat)
• Positive temperature coefficient in VCE(sat)
• Low EMI
• Low Gate Charge
• Very soft, fast recovery anti-parallel EmCon HE diode
• Qualified according to JEDEC1 for target applications
• Pb-free lead plating; RoHS compliant
• Complete product spectrum and PSpice Models
