Pricing, Packaging
| Model | Package | Pins | Temp. Range |
Price* (100-499) |
Price* (1000 pcs.) |
Production** Availability |
ROHS Compliant | |
|---|---|---|---|---|---|---|---|---|
| ADG333ABN |  |
20 ld PDIP | 20 | Ind | $3.86 | $3.29 | 02/26/2010 | N Material Declaration |
| ADG333ABRZ | |
20 ld PDIP | 20 | Ind | $3.35 | $2.84 | 04/30/2010 | Y Material Declaration |
| ADG333ABR | |
20 ld SOIC - Wide | 20 | Ind | $3.75 | $3.19 | 02/26/2010 | N Material Declaration |
| ADG333ABR-REEL | |
20 ld SOIC - Wide | 20 | Ind | - | $3.19 | 03/05/2010 | N Material Declaration |
| ADG333ABRS | |
20 ld SSOP | 20 | Ind | $3.75 | $3.19 | 02/26/2010 | N Material Declaration |
| ADG333ABRS-REEL | |
20 ld SSOP | 20 | Ind | - | $3.19 | 02/26/2010 | N Material Declaration |
| ADG333ABRSZ | |
20 ld SSOP | 20 | Ind | $3.25 | $2.76 | 02/26/2010 | Y Material Declaration |
| ADG333ABRSZ-REEL | |
20 ld SSOP | 20 | Ind | - | $2.76 | 02/26/2010 | Y Material Declaration |
| ADG333ABRZ | |
20 ld SOIC - Wide | 20 | Ind | $3.25 | $2.76 | 02/26/2010 | Y Material Declaration |
| ADG333ABRZ-REEL | |
20 ld SOIC - Wide | 20 | Ind | - | $2.76 | 03/05/2010 | Y Material Declaration |
Description
The ADG333A is a monolithic CMOS device comprising four independently selectable SPDT switches. It is designed on an LC2MOS process which provides low power dissipation yet achieves a high switching speed and a low on resistance.
When they are ON, each switch conducts equally well in both directions and has an input signal range which extends to the power supplies. In the OFF condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
Features
- ton 175 ns
- toff <145ns

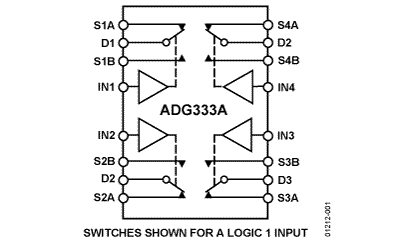

Functional Block Diagram for ADG333A
