MAX16815, MAX16828 High-Voltage, 100mA/200mA Adjustable Linear High-Brightness LED Drivers with PWM Dimming

High-Voltage LED Drivers with Adjustable LED Current and High-Voltage Dimming Input Ease Driver Design

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 204kB)
Download

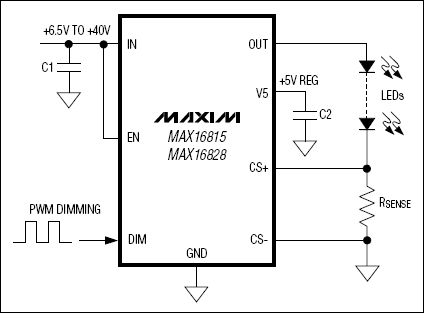

The MAX16815/MAX16828 current regulators operate from a 6.5V to 40V input voltage range and deliver up to 100mA (MAX16815) or 200mA (MAX16828) to high-brightness LED (HB LED) loads. The output current is adjusted by using an external current sense resistor in series with the LEDs. The MAX16815/MAX16828's dimming input allows wide-range "pulsed" PWM operation. An on-board pass element minimizes external components while providing ��3.5% output-current accuracy.

The MAX16815/MAX16828 are available in a thermally enhanced, 3mm x 3mm, 6-pin TDFN package with exposed pad and in an 8-pin SO package with exposed pad; they are specified over the automotive -40��C to +125��C temperature range.

An evaluation kit is available: MAX16828EVKIT

Key Features		Applications/Uses
6.5V to 40V Operating Range Adjustable LED Current MAX16815: 35mA to 100mA MAX16828: 35mA to 200mA ��3.5% LED Current Accuracy High-Voltage DIM Input for Dimming Interface Integrated Pass Element with Low-Dropout Voltage (0.4V typ) 5V Regulated Output with 4mA Source Capability Thermal Shutdown Output Short-Circuit Protection Available in Small, Thermally Enhanced, 3mm x 3mm, 6-Pin TDFN and 8-Pin SO with Exposed Pad Packages -40��C to +125��C Operating Temperature Range		Ambient and Architectural Lighting Automotive Exterior: Rear Combination Lights (RCLs) Automotive Interior: Map, Courtesy, and Cluster Lighting Display Backlighting Emergency Vehicle Warning Lights LED Bulbs Signage and Indicators
