LP3966ES-ADJ 3A Fast Ultra Low Dropout Linear Regulator

Packaging:

Part Number(s) (NSID)	Top View	Type	Pins	MSL Rating	Peak Reflow	RoHS Status	CAD Symbols	Models	Package Marking Format
LP3966ES-1.8/NOPB LP3966ES-1.8		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -1.8
LP3966ES-2.5/NOPB LP3966ES-2.5		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -2.5
LP3966ES-3.3/NOPB LP3966ES-3.3		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -3.3
LP3966ES-ADJ/NOPB LP3966ES-ADJ		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -ADJ
LP3966ESX-1.8/NOPB LP3966ESX-1.8		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -1.8
LP3966ESX-2.5/NOPB LP3966ESX-2.5		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -2.5
LP3966ESX-3.3/NOPB LP3966ESX-3.3		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -3.3
LP3966ESX-ADJ/NOPB LP3966ESX-ADJ		TO-263	5	3 3	245 235	Detail	Download	N/A	NSUZXYTTE# LP3966ES -ADJ
LP3966ET-ADJ/NOPB LP3966ET-ADJ		TO-220	5	1 1	NA NA	Detail	Download	N/A	NSUZXYTTE# LP3966ET -ADJ

Description

The LP3963/LP3966 series of fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. Wide range of preset output voltage options are available. These ultra low dropout linear regulators respond very quickly to step changes in load which makes them suitable for low voltage microprocessor applications. The LP3963/LP3966 are developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3963/LP3966 to operate under extremely low dropout conditions.

Dropout Voltage: Ultra low dropout voltage; typically 80mV at 300mA load current and 800mV at 3A load current.

Ground Pin Current: Typically 6mA at 3A load current.

Shutdown Mode: Typically 15µA quiescent current when the shutdown pin is pulled low.

Error# Flag: Error# flag goes low when the output voltage drops 10% below nominal value (for LP3963).

SENSE: Sense pin improves regulation at remote loads. (For LP3966)

Precision Output Voltage: Multiple output voltage options are available ranging from 1.2V to 5.0V and adjustable (LP3966), with a guaranteed accuracy of ¡À1.5% at room temperature, and ¡À3.0% over all conditions (varying line, load, and temperature).

Applications

Diagrams:

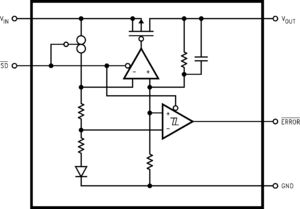

Typical Application click for larger image	Block Diagram click for larger image
Typical Performance click for larger image
