Packaging:
| Part Number(s) (NSID) |
Top View | Type | Pins | MSL Rating | Peak Reflow |
|---|---|---|---|---|---|
| LM324AM/NOPB LM324AM |
 |
SOIC NARROW | 14 | 1 1 |
260 235 |
| LM324AMX/NOPB LM324AMX |
|
SOIC NARROW | 14 | 1 1 |
260 235 |
| LM324AN/NOPB LM324AN |
 |
MDIP | 14 | 1 1 |
NA NA |
| LM324M/NOPB LM324M |
|
SOIC NARROW | 14 | 1 1 |
260 235 |
| LM324MT/NOPB LM324MT |
 |
TSSOP | 14 | 1 1 |
260 260 |
| LM324MTX/NOPB LM324MTX |
|
TSSOP | 14 | 1 1 |
260 260 |
| LM324MX/NOPB LM324MX |
|
SOIC NARROW | 14 | 1 1 |
260 235 |
| LM324N/NOPB LM324N |
|
MDIP | 14 | 1 1 |
NA NA |
| LM324J |
 |
CERDIP | 14 | 1 | NA |
| LM324 MWA |
Description
The LM124 series consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.
Features
| • | Internally frequency compensated for unity gain |
| • | Large DC voltage gain 100 dB |
| • | Wide bandwidth (unity gain) 1 MHz (temperature compensated) |
| • | Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V |
| • | Very low supply current drain (700 µA)-essentially independent of supply voltage |
| • | Low input biasing current 45 nA (temperature compensated) |
| • | Low input offset voltage 2 mV and offset current: 5 nA |
| • | Input common-mode voltage range includes ground |
| • | Differential input voltage range equal to the power supply voltage |
| • | Large output voltage swing 0V to V+ - 1.5V |
Diagrams:

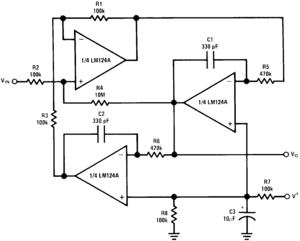

Typical Application
Connection Diagram
Typical Performance
