Packaging:
| Part Number(s) (NSID) |
Top View | Type | Pins | MSL Rating | Peak Reflow |
|---|---|---|---|---|---|
| LM317AEMP/NOPB LM317AEMP |
SOT-223 | 4 | 1 1 |
260 260 |
|
| LM317AEMPX/NOPB LM317AEMPX |
SOT-223 | 4 | 1 1 |
260 260 |
|
| LM317AMDT/NOPB LM317AMDT |
TO-252 | 3 | 2 1 |
260 235 |
|
| LM317AMDTX/NOPB LM317AMDTX |
TO-252 | 3 | 2 1 |
260 235 |
|
| LM317AT/NOPB LM317AT |
TO-220 | 3 | 1 1 |
NA NA |
|
| LM317EMP/NOPB LM317EMP |
SOT-223 | 4 | 1 1 |
260 260 |
|
| LM317EMPX/NOPB LM317EMPX |
SOT-223 | 4 | 1 1 |
260 260 |
|
| LM317MDT/NOPB LM317MDT |
TO-252 | 3 | 2 1 |
260 235 |
|
| LM317MDTX/NOPB LM317MDTX |
TO-252 | 3 | 2 1 |
260 235 |
|
| LM317S/NOPB LM317S |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM317SX/NOPB LM317SX |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM317T/NOPB LM317T |
TO-220 | 3 | 1 1 |
NA NA |
|
| LM317AH/NOPB LM317AH |
TO-39 | 3 | 1 1 |
NA NA |
|
| LM317H/NOPB LM317H |
TO-39 | 3 | 1 1 |
NA NA |
|
| LM317K STEEL/NOPB LM317K STEEL |
TO-3 | 2 | 1 1 |
NA NA |
Description
The LM117 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM117 is packaged in standard transistor packages which are easily mounted and handled.
In addition to higher performance than fixed regulators, the LM117 series offers full overload protection available only in IC's. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected.
Normally, no capacitors are needed unless the device is situated more than 6 inches from the input filter capacitors in which case an input bypass is needed. An optional output capacitor can be added to improve transient response. The adjustment terminal can be bypassed to achieve very high ripple rejection ratios which are difficult to achieve with standard 3-terminal regulators.
Besides replacing fixed regulators, the LM117 is useful in a wide variety of other applications. Since the regulator is “floating” and sees only the input-to-output differential voltage, supplies of several hundred volts can be regulated as long as the maximum input to output differential is not exceeded, i.e., avoid short-circuiting the output.
Also, it makes an especially simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment pin and output, the LM117 can be used as a precision current regulator. Supplies with electronic shutdown can be achieved by clamping the adjustment terminal to ground which programs the output to 1.2V where most loads draw little current.
For applications requiring greater output current, see LM150 series (3A) and LM138 series (5A) data sheets. For the negative complement, see LM137 series data sheet.
| • | Guaranteed 1% output voltage tolerance (LM317A) |
| • | Guaranteed max. 0.01%/V line regulation (LM317A) |
| • | Guaranteed max. 0.3% load regulation (LM117) |
| • | Guaranteed 1.5A output current |
| • | Adjustable output down to 1.2V |
| • | Current limit constant with temperature |
| • | P |
| • | 80 dB ripple rejection |
| • | Output is short-circuit protected |
Diagrams:

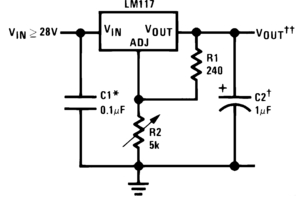

Typical Application
Connection Diagram
Typical Performance
