Packaging:
| Part Number(s) (NSID) |
Top View | Type | Pins | MSL Rating | Peak Reflow |
|---|---|---|---|---|---|
| LM1085IS-12/NOPB LM1085IS-12 |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM1085IS-3.3/NOPB LM1085IS-3.3 |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM1085IS-5.0/NOPB LM1085IS-5.0 |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM1085IS-ADJ/NOPB LM1085IS-ADJ |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM1085ISX-3.3/NOPB LM1085ISX-3.3 |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM1085ISX-5.0/NOPB LM1085ISX-5.0 |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM1085ISX-ADJ/NOPB LM1085ISX-ADJ |
TO-263 | 3 | 3 3 |
245 235 |
|
| LM1085IT-12/NOPB LM1085IT-12 |
TO-220 | 3 | 1 1 |
NA NA |
|
| LM1085IT-3.3/NOPB LM1085IT-3.3 |
TO-220 | 3 | 1 1 |
NA NA |
|
| LM1085IT-5.0/NOPB LM1085IT-5.0 |
TO-220 | 3 | 1 1 |
NA NA |
|
| LM1085IT-ADJ/NOPB LM1085IT-ADJ |
TO-220 | 3 | 1 1 |
NA NA |
|
| LM1085I-ADJ MDC |
Description
The LM1085 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 3A of load current. It has the same pin-out as National Semiconductor's industry standard LM317.
The LM1085 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions integrate the adjust resistors.
The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown.
The LM1085 series is available in TO-220 and TO-263 packages. Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.
Applications
| • | High Efficiency Linear Regulators |
| • | Battery Charger |
| • | Post Regulation for Switching Supplies |
| • | Constant Current Regulator |
| • | Microprocessor Supply |
Features
- Available in 3.3V, 5.0V, 12V and Adjustable Versions
- Current Limiting and Thermal Protection
|
Output Current |
3A |
|
Line Regulation |
0.015% (typical) |
|
Load Regulation |
0.1% (typical) |
Diagrams:
source：ShenZhen henlito electronic co.,ltd. web:www.henlito.com

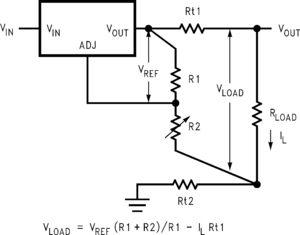

Typical Application
Connection Diagram
Typical Performance
