Description
The TMP100 and TMP101 are two-wire, serial output temperature sensors available in SOT23-6 packages. Requiring no external components, the TMP100 and TMP101 are capable of reading temperatures with a resolution of 0.0625°C.
The TMP100 and TMP101 feature SMBus and I2C™ interface compatibility, with the TMP100 allowing up to eight devices on one bus. The TMP101 offers SMBus alert function with up to three devices per bus.
The TMP100 and TMP101 are ideal for extended temperature measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications.
The TMP100 and TMP101 are specified for operation over a temperature range of –55°C to +125°C.
Features
- DIGITAL OUTPUT: I2C Serial 2-Wire
- RESOLUTION: 9-to 12-Bits, User-Selectable
- ACCURACY:
- ±2.0°C from –25°C to +85°C (max)
- ±3.0°C from –55°C to +125°C (max)
- LOW QUIESCENT CURRENT: 45 µA, 0.1 µA Standby
- WIDE SUPPLY RANGE: 2.7V to 5.5V
- TINY SOT23-6 PACKAGE
- APPLICATIONS
- POWER-SUPPLY TEMPERATURE MONITORING
- COMPUTER PERIPHERAL THERMAL PROTECTION
- NOTEBOOK COMPUTERS
- CELL PHONES
- BATTERY MANAGEMENT
- OFFICE MACHINES
- THERMOSTAT CONTROLS
- ENVIRONMENTAL MONITORING and HVAC
- ELECTROMECHANICAL DEVICE TEMPERATURE
I2C is a trademark of NXP Semiconductors. All other trademarks are the property of their respective owners.
Pricing / Packaging
| Device | Status | Temp (oC) | Price | Quantity | Package | Pins | Top Side Marking | Package QTY | Package Carrier |
| TMP101NA/250 | ACTIVE | -55 to 125 | 0.90 | 1ku | SOT-23 (DBV) | 6 | View | 250 | SMALL T&R |
| TMP101NA/250G4 | ACTIVE | -55 to 125 | 0.90 | 1ku | SOT-23 (DBV) | 6 | View | 250 | SMALL T&R |
| TMP101NA/3K | ACTIVE | -55 to 125 | 0.80 | 1ku | SOT-23 (DBV) | 6 | View | 3000 | LARGE T&R |
| TMP101NA/3KG4 | ACTIVE | -55 to 125 | 0.80 | 1ku | SOT-23 (DBV) | 6 | View | 3000 | LARGE T&R |

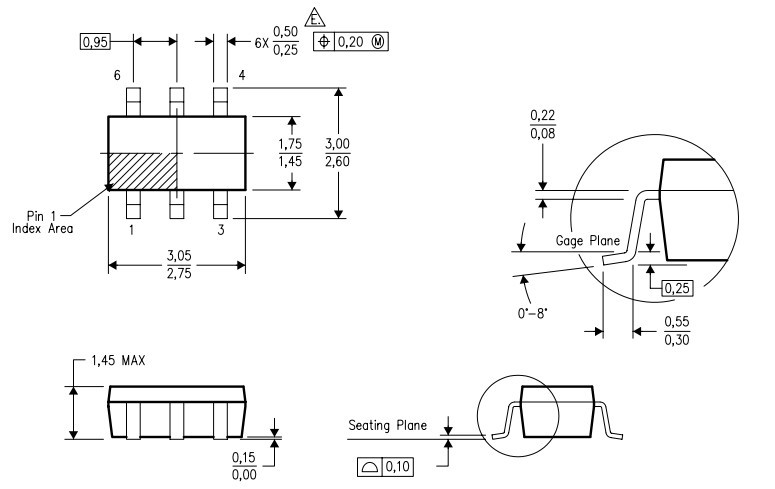

Packag
