LM2940SX-10 1A Low Dropout Regulator

Packaging

Part Number(s) (NSID)	Top View	Type	Pins	MSL Rating	Peak Reflow	RoHS Status	Models	Package Marking Format
LM2940IMP-10/NOPB LM2940IMP-10		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L55B
LM2940IMP-12/NOPB LM2940IMP-12		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L56B
LM2940IMP-15/NOPB LM2940IMP-15		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L70B
LM2940IMP-5.0/NOPB LM2940IMP-5.0		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L53B
LM2940IMP-9.0/NOPB LM2940IMP-9.0		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L0EB
LM2940IMPX-10/NOPB LM2940IMPX-10		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L55B
LM2940IMPX-12/NOPB LM2940IMPX-12		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L56B
LM2940IMPX-5.0/NOPB LM2940IMPX-5.0		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L53B
LM2940IMPX-8.0/NOPB LM2940IMPX-8.0		SOT-223	4	1 1	260 260	Detail	N/A	XYTT L54B
LM2940LD-12/NOPB LM2940LD-12		LLP	8	3 1	260 235	Detail	N/A	NS UZXYTT L00018B
LM2940LD-5.0/NOPB LM2940LD-5.0		LLP	8	3 1	260 235	Detail	N/A	NS UZXYTT L00014B
LM2940S-10/NOPB LM2940S-10		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -10 P+
LM2940S-12/NOPB LM2940S-12		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -12 P+
LM2940S-5.0/NOPB LM2940S-5.0		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -5.0 P+
LM2940S-8.0/NOPB LM2940S-8.0		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -8.0 P+
LM2940S-9.0/NOPB LM2940S-9.0		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -9.0 P+
LM2940SX-10/NOPB LM2940SX-10		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -10 P+
LM2940SX-12/NOPB LM2940SX-12		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -12 P+
LM2940SX-5.0/NOPB LM2940SX-5.0		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -5.0 P+
LM2940SX-8.0/NOPB LM2940SX-8.0		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -8.0 P+
LM2940SX-9.0/NOPB LM2940SX-9.0		TO-263	3	3 3	245 235	Detail	N/A	NSUZXYTTE# LM2940S -9.0 P+
LM2940T-10.0/NOPB LM2940T-10.0		TO-220	3	1 1	NA NA	Detail	N/A	NSUZXYTTE# LM2940T 10.0 P+
LM2940T-12.0/NOPB LM2940T-12.0		TO-220	3	1 1	NA NA	Detail	N/A	NSUZXYTTE# LM2940T 12.0 P+
LM2940T-5.0/NOPB LM2940T-5.0		TO-220	3	1 1	NA NA	Detail	N/A	NSUZXYTTE# LM2940T -5.0 P+
LM2940T-8.0/NOPB LM2940T-8.0		TO-220	3	1 1	NA NA	Detail	N/A	NSUZXYTTE# LM2940T -8.0 P+
LM2940T-9.0/NOPB LM2940T-9.0		TO-220	3	1 1	NA NA	Detail	N/A	NSUZXYTTE# LM2940T -9.0 P+
LM2940WG5.0/883		CERPACK	16	1	NA	Detail	N/A	NSZSSXXYYA LM2940WG5.0/ 883 Q 5962- 8958701XA

Description

The LM2940/LM2940C positive voltage regulator features the ability to source 1A of output current with a dropout voltage of typically 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (V_IN − V_OUT ¡Ü 3V).

Designed also for vehicular applications, the LM2940/LM2940C and all regulated circuitry are protected from reverse battery installations or 2-battery jumps. During line transients, such as load dump when the input voltage can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both the internal circuits and the load. The LM2940/LM2940C cannot be harmed by temporary mirror-image insertion. Familiar regulator features such as short circuit and thermal overload protection are also provided.

Features

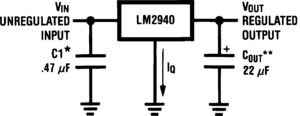

Typical Application click for larger image	Connection Diagram click for larger image
Typical Performance click for larger image
