Description
The LTC6655 family of bandgap references are low noise, low drift, precision voltage references that are fully specified over the –40°C to 125°C temperature range. The low noise and drift are ideally suited for the high resolution measurements required by instrumentation and test equipment, while the wide temperature range supports automotive and industrial applications. Advanced curvature compensation allows this bandgap reference to achieve a drift of less than 2ppm/°C with a predictable temperature characteristic and an output voltage accurate to ±0.025%, reducing or eliminating the need for calibration.
The LTC6655 low dropout series references can be powered from as little as 500mV above the output voltage or as much as 13.2V. Superior load regulation and source and sink capabilities coupled with exceptional line rejection give consistent performance over a wide range of line and load conditions. A shutdown mode is provided for low power applications. Available in a small MSOP package, the LTC6655 family of references is an excellent choice for demanding precision applications.
Features
- Low Noise: 0.25ppmP-P (0.1Hz to 10Hz)
- Low Drift: 2ppm/°C Max
- High Accuracy: ±0.025% Max
- Fully Specified Over –40°C to 125°C
- 100% Tested at –40°C, 25°C and 125°C
- Load Regulation: <10ppm/mA
- Sinks and Sources Current: ±5mA
- Low Dropout: 500mV
- Wide Supply Range to 13.2V
- Low Power Shutdown: <20μA Max
- Available Output Voltage Options: 2.5V
- 1.25V, 2.048V, 3V, 3.3V, 4.096V, 5V Options in Development. Contact LTC for Status
- Available in an 8-Lead MSOP Package
Applications
- Instrumentation and Test Equipment
- High Resolution Data Acquisition Systems
- Weigh Scales
- Precision Battery Monitors
- High Temperature Applications
- Precision Regulators
- Medical Equipment
Packaging
MS-8

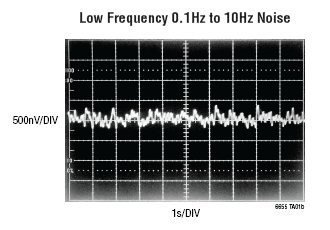

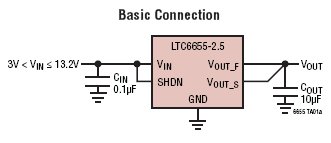

Typical Application
