ADM690AN

Description

The ADM690-ADM695 family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup battery switchover, watchdog timer, CMOS RAM write protection, and power failure warning. The complete family provides a variety of configurations to satisfy most microprocessor system requirements.

The ADM690, ADM692 and ADM694 are available in 8-pin DIP packages and provide:

Power-on reset output during power-up, power-down and brownout conditions. The RESET output remains operational with V_CC as low as 1 V.

Battery backup switching for CMOS RAM, CMOS microprocessor or other low power logic.

A reset pulse if the optional watchdog timer has not been toggled within a specified time.

A 1.3 V threshold detector for power fail warning, low battery detection, or to monitor a power

Supply other than +5 V.

The ADM691, ADM693 and ADM695 are available in 16-pin DIP and small outline packages and provide three additional functions.

Write protection of CMOS RAM or EEPROM.

Adjustable reset and watchdog timeout periods.

Separate watchdog timeout, backup battery switchover, and low V_CC status outputs.

The ADM690-ADM695 family is fabricated using an advanced epitaxial CMOS process combining low power consumption (5 mW), extremely fast Chip Enable gating (5 ns) and high reliability. RESET assertion is guaranteed with V_CC as low as 1 V. In addition, the power switching circuitry is designed for minimal voltage drop thereby permitting increased output current drive of up to 100 mA without the need for an external pass transistor.

Features

Superior Upgrade for MAX690�CMAX695

Specified Over Temperature

Low Power Consumption (5 mW)

Precision Voltage Monitor

Reset Assertion Down to 1 V V_CC

Low Switch On-Resistance 1.5 O Normal, 20 O in Backup

High Current Drive (100 mA)

Watchdog Timer��100 ms, 1.6 s, or Adjustable

600 nA Standby Current

Automatic Battery Backup Power Switching

Extremely Fast Gating of Chip Enable Signals (5 ns)

Voltage Monitor for Power Fail

Pricing, Packaging

Model	Status	Package	Pins	Temp. Range	Price* (100-499)	Price* (1000 pcs.)	Production** Availability	ROHS Compliant
ADM690AN	Prodn	8 ld PDIP	8	Ind	$3.13	$2.66	02/05/2010	N Material Declaration
ADM690ANZ	Prodn	8 ld PDIP	8	Ind	$2.84	$2.42	04/23/2010	Y Material Declaration
ADM690SQ	Prodn	CERDIP GLASS SEAL	8	Mil	$6.46	$5.50	02/05/2010	N Material Declaration

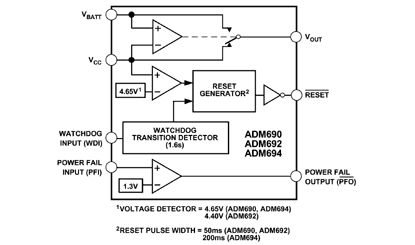

Functional Block Diagram for ADM690
