Description
The ADM690-ADM695 family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup battery switchover, watchdog timer, CMOS RAM write protection, and power failure warning. The complete family provides a variety of configurations to satisfy most microprocessor system requirements.

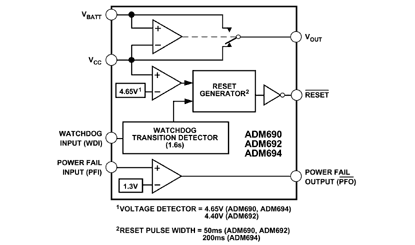

The ADM690, ADM692 and ADM694 are available in 8-pin DIP packages and provide:
The ADM691, ADM693 and ADM695 are available in 16-pin DIP and small outline packages and provide three additional functions.
The ADM690-ADM695 family is fabricated using an advanced epitaxial CMOS process combining low power consumption (5 mW), extremely fast Chip Enable gating (5 ns) and high reliability. RESET assertion is guaranteed with VCC as low as 1 V. In addition, the power switching circuitry is designed for minimal voltage drop thereby permitting increased output current drive of up to 100 mA without the need for an external pass transistor.
Features
Pricing, Packaging & Availability
| Model | Status | Package | Pins | Temp. Range |
Price* (100-499) |
Price* (1000 pcs.) |
Production** Availability |
ROHS Compliant |
|---|---|---|---|---|---|---|---|---|
| ADM694AN | Prodn | 8 ld PDIP | 8 | Ind | $3.40 | $2.92 | 02/12/2010 | N Material Declaration |
| ADM694ANZ | Prodn | 8 ld PDIP | 8 | Ind | $2.94 | $2.53 | 04/30/2010 | Y Material Declaration |
| ADM694SQ | Prodn | CERDIP GLASS SEAL | 8 | Mil | $6.65 |
