| (NSID) | Top View | Type | Pins | MSL Rating | Peak Reflow | RoHS Status |
CAD Symbols | Models | Package Marking Format |
|---|---|---|---|---|---|---|---|---|---|
| LP2950ACZ-3.0/NOPB LP2950ACZ-3.0 |
TO-92 | 3 | 1 1 |
NA NA |
Detail | Download | N/A |
NSXYTT 2950A CZ3.0 |
|
| LP2950ACZ-3.3/NOPB LP2950ACZ-3.3 |
TO-92 | 3 | 1 1 |
NA NA |
Detail | Download | N/A |
NSXYTT 2950A CZ3.3 |
|
| LP2950ACZ-5.0/NOPB LP2950ACZ-5.0 |
TO-92 | 3 | 1 1 |
NA NA |
Detail | Download | N/A |
NSXYTT 2950A CZ5.0 |
|
| LP2950CDT-3.0/NOPB LP2950CDT-3.0 |
TO-252 | 3 | 2 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTT LP2950 CDT-3.0 |
|
| LP2950CDT-3.3/NOPB LP2950CDT-3.3 |
TO-252 | 3 | 2 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTT LP2950 CDT-3.3 |
|
| LP2950CDT-5.0/NOPB LP2950CDT-5.0 |
TO-252 | 3 | 2 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTT LP2950 CDT-5.0 |
|
| LP2950CDTX-3.0/NOPB LP2950CDTX-3.0 |
TO-252 | 3 | 2 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTT LP2950 CDT-3.0 |
|
| LP2950CDTX-3.3/NOPB LP2950CDTX-3.3 |
TO-252 | 3 | 2 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTT LP2950 CDT-3.3 |
|
| LP2950CDTX-5.0/NOPB LP2950CDTX-5.0 |
TO-252 | 3 | 2 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTT LP2950 CDT-5.0 |
|
| LP2950CZ-3.0/NOPB LP2950CZ-3.0 |
TO-92 | 3 | 1 1 |
NA NA |
Detail | Download | N/A |
NSXYTT 2950 CZ3.0 |
|
| LP2950CZ-3.3/NOPB LP2950CZ-3.3 |
TO-92 | 3 | 1 1 |
NA NA |
Detail | Download | N/A |
NSXYTT 2950 CZ3.3 |
|
| LP2950CZ-5.0/NOPB LP2950CZ-5.0 |
TO-92 | 3 | 1 1 |
NA NA |
Detail | Download | N/A |
NSXYTT 2950 CZ5.0 |
Description
The LP2950 and LP2951 are micropower voltage regulators with very low quiescent current (75μA typ.) and very low dropout voltage (typ. 40mV at light loads and 380mV at
The LP2950-5.0 is available in the surface-mount D-Pak package, and in the popular 3-pin TO-92 package for pin-compatibility with older 5V regulators. The 8-lead LP2951 is available in plastic, ceramic dual-in-line, LLP, or metal can packages and offers additional system functions.
One such feature is an error flag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-on reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off. Also, the part may be pin-strapped for a 5V, 3V, or 3.3V output (depending on the version), or programmed from 1.24V to 29V with an external pair of resistors.
Careful design of the LP2950/LP2951 has minimized all contributions to the error budget. This includes a tight initial tolerance (.5% typ.), extremely good load and line regulation (.05% typ.) and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference.
| • | 5V, 3V, and 3.3V versions available |
| • | High accuracy output voltage |
| • | Guaranteed 100mA output current |
| • | Extremely low quiescent current |
| • | Low dropout voltage |
| • | Extremely tight load and line regulation |
| • | Very low temperature coefficient |
| • | Use as Regulator or Reference |
| • | Needs minimum capacitance for stability |
| • | Current and Thermal Limiting |
| • | Stable with low-ESR output capacitors (10mΩ to 6Ω) |
Diagrams

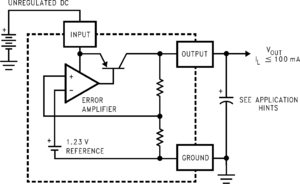

 Typical Application for LP2950
|
Connection Diagram
 TO-92 (Z) Bottom View
 TO-252 (DPAK) Top View
|
Typical Performance
|
