| Part | Brand | QTY | Packaging | Note | |
| MAX7450ESA MAX7451ESA MAX7452ESA |
MAXIM |  |
3000 | SOP8 |
|
Description
The MAX7450/MAX7451/MAX7452 complete front-end video-signal conditioners are designed to improve the quality of standard-definition video signals. The devices restore the DC level of the video input, correct for amplitude errors up to ±6dB, detect fault conditions, and filter out-of-band noise. The MAX7450/MAX7451/MAX7452 optimize the signal quality for further video processing through a crosspoint switch or video decoder (ADC). Each device integrates an input video clamp, automatic gain control (AGC), loss-of-sync (LOS) detector, and an out-of-band noise/lowpass filter. These devices also incorporate a user-selectable buffer gain (0 or +6dB) and an AGC-disable function.
The MAX7450 and MAX7451 operate from dual power supplies of ±5V or ±3.3V respectively, and they restore the video blanking level to GND. The MAX7452 operates from a single +5V supply and features a user-adjustable clamp level.
The devices are available in an 8-pin SO package with an exposed pad and are specified for operation over the extended (-40°C to +85°C) temperature range.
An evaluation kit is available: MAX7450EVKIT MAX7452EVKIT
Key Features
- MAX7450 (±5V)
- MAX7451 (±3.3V)
Applications
| Key Specifications: Video Input Conditioners | |||||||||||||
| Part Number | Signal Type | VSUPPLY (V) |
Output Video Buffer | Gain (dB) |
Channels | Back Porch Clamp Level | Gain Cntl. | Package/Pins | Smallest Available Pckg. (mm2) |
Oper. Temp. (°C) | |||
| max w/pins | |||||||||||||
| MAX7450 | CVBS | ±5 | Yes |
|
1 | Fixed to Gnd | Automatic |
|
30.9 | -40 to +85 | |||
| MAX7451 | ±3.3 | Fixed to Gnd |
| ||||||||||
| MAX7452 | +5 | Adjustable |
| ||||||||||
| Diagram |

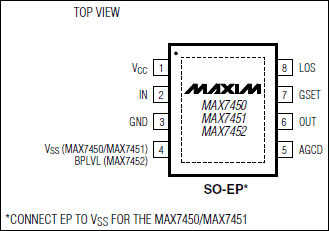

 Pin Configuration |
