| LM4863LQ/NOPB LM4863LQ |
 |
LLP | 24 | 3 1 |
260 235 |
Detail | N/A | N/A |
NS UZXYTT L4863 |
Description
The LM4863 is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.2W to a 4
load or 2.5W to a 3 load with less than 1.0% THD+N. In addition, the headphone input pin allows the amplifiers to operate in single-ended mode when driving stereo headphones.
Boomer audio power amplifiers were designed specifically to provide high quality output power from a surface mount package while requiring few external components. To simplify audio system design, the LM4863 combines dual bridge speaker amplifiers and stereo headphone amplifiers on one chip.
The LM4863 features an externally controlled, low-power consumption shutdown mode, a stereo headphone amplifier mode, and thermal shutdown protection. It also utilizes circuitry to reduce "clicks and pops" during device turn-on.
| • | Stereo headphone amplifier mode |
| • | "Click and pop" suppression circuitry |
| • | Unity-gain stable |
| • | Thermal shutdown protection circuitry |
| • | SOIC, TSSOP, exposed-DAP TSSOP, and LLP packages |
|
PO at 1% THD+N |
|
LM4863LQ, 3 |
2.5W(typ), 2.2W(typ) |
, 4|
LM4863MTE, 3 |
2.5W(typ), 2.2W(typ) |
|
LM4863MTE, 8 |
1.1W(typ) |
|
LM4863, 8 |
1.1W(typ) |
|
Single-ended mode THD+N at 75mW into 32 |
0.5%(max) |
|
Shutdown current |
0.7µA(typ) |
|
Supply voltage range |
2.0V to 5.5V |
| • | Multimedia monitors |
| • | Portable and desktop computers |
| • | Portable televisions |
Diagrams

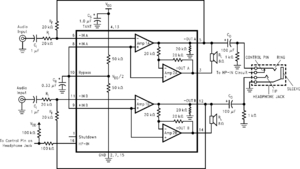

Typical Application
|
Connection Diagram
 |
Typical Performance  |
