| Part Number(s) (NSID) |
Top View | Type | Pins | MSL Rating | Peak Reflow | RoHS Status |
CAD Symbols | Models | Package Marking Format |
|---|---|---|---|---|---|---|---|---|---|
| LM4936MH/NOPB LM4936MH |
 |
TSSOP EXP PAD | 28 | 1 1 |
260 260 |
Detail | Download | N/A |
NSUZXYTTE# LM4936MH |
| LM4936MHX/NOPB LM4936MHX |
|
TSSOP EXP PAD | 28 | 1 1 |
260 260 |
Detail | Download | N/A |
NSUZXYTTE# LM4936MH |
PDF
Description
The LM4936 is a monolithic integrated circuit that provides volume control, and stereo bridged audio power amplifiers capable of producing 2W into 4
with less than 1% THD or 2.2W into 3 with less than 1% THD.
Boomer® audio integrated circuits were designed specifically to provide high quality audio while requiring a minimum amount of external components. The LM4936 incorporates a SPI or I2C Control Interface that runs the volume control, stereo bridged audio power amplifiers and a selectable gain or bass boost. All of the LM4936's features (i.e. SD, Mode, Mute, Gain Sel) make it optimally suited for multimedia monitors, portable radios, desktop, and portable computer applications.
The LM4936 features an externally controlled, low-power consumption shutdown mode, and both a power amplifier and headphone mute for maximum system flexibility and performance.
| • | Selectable SPI or I2C Control Interface |
| • | System Beep Detect |
| • | Stereo switchable bridged/single-ended power amplifiers |
| • | Selectable internal/external gain and bass boost |
| • | "Click and pop" suppression circuitry |
| • | Thermal shutdown protection circuitry |
| • | Headphone Sense |
|
PO at 1% THD+N |
|
|
into 3 |
2.2W (typ) |
|
into 4 |
2.0W (typ) |
|
into 8 |
1.25W (typ) |
|
Single-ended mode - THD+N at 90mW into 32 |
1%(typ) |
|
Shutdown current |
0.7µA (typ) |
| • | Portable and Desktop Computers |
| • | Multimedia Monitors |
| • | Portable Radios, PDAs, and Portable TVs |
Diagrams

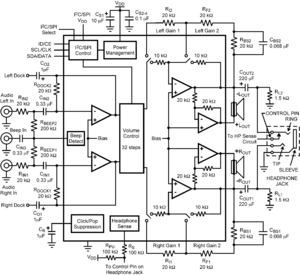

Typical Application
|
Connection Diagram
|
Typical Performance  source：ShenZhen henlito electronic co.,ltd.
