Description
The LMP2234 is a quad micropower precision amplifier designed for battery powered applications. The 1.6 to 5.5V operating supply voltage range and quiescent power consumption of only 50 μW extend the battery life in portable systems. The LMP2234 is part of the LMP precision amplifier family. The high impedance CMOS input makes it ideal for instrumentation and other sensor interface applications.
The LMP2234 has a maximum offset voltage of 150 μV and 0.3 μV/°C offset drift along with low bias current of only
The LMP2234 has a rail-to-rail output that swings 15 mV from the supply voltage, which increases system dynamic range. The common mode input voltage range extends 200 mV below the negative supply, thus the LMP2234 is ideal for ground sensing in single supply applications.
The LMP2234 is offered in 14-Pin SOIC and TSSOP packages.
| • | Precision instrumentation amplifiers |
| • | Battery powered medical instrumentation |
| • | High impedance sensors |
| • | Strain gauge bridge amplifier |
| • | Thermocouple amplifiers |
(For VS = 5V, Typical unless otherwise noted)
|
Supply current at 1.8V |
31 µA |
|
Operating voltage range |
1.6V to 5.5V |
|
Low TCVOS |
±0.75 µV/°C (max) |
|
VOS |
±150 µV (max) |
|
Input bias current |
±20 fA |
|
PSRR |
120 dB |
|
CMRR |
97 dB |
|
Open loop gain |
120 dB |
|
Gain bandwidth product |
130 kHz |
|
Slew rate |
58 V/ms |
|
Input voltage noise, f = 1 kHz |
60 nV/ |
|
Temperature range |
–40°C to 125°C |
Diagrams

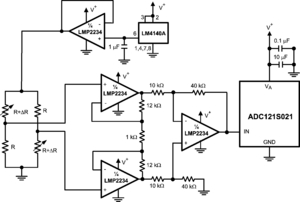

Typical Application
|
Connection Diagram
|
Typical Performance
|
