| Part Number(s) (NSID) |
Top View | Type | Pins | MSL Rating | Peak Reflow | RoHS Status |
CAD Symbols | Models | Package Marking Format |
|---|---|---|---|---|---|---|---|---|---|
| LM361M/NOPB LM361M |
 |
SOIC NARROW | 14 | 1 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTTE# LM361M |
| LM361MX/NOPB LM361MX |
|
SOIC NARROW | 14 | 1 1 |
260 235 |
Detail | Download | N/A |
NSUZXYTTE# LM361M |
| LM361N/NOPB LM361N |
 |
MDIP | 14 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYYTTE# LM361N |
| LM361H/NOPB LM361H |
TO-100 | 10 | 1 1 |
NA NA |
Detail | Download | N/A |
NSZXYTTE# LM361H |
PDF
| • | Independent strobes |
| • | Guaranteed high speed: 20 ns max |
| • | Tight delay matching on both outputs |
| • | Complementary TTL outputs |
| • | Operates from op amp supplies: ±15V |
| • | Low speed variation with overdrive variation |
| • | Low input offset voltage |
| • | Versatile supply voltage range |
Description
The LM161/LM361 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the SE529/NE529 for which it is a pin-for-pin replacement. The device has been optimized for greater speed performance and lower input offset voltage. Typically delay varies only 3 ns for over-drive variations of 5 mV to 500 mV. It may be operated from op amp supplies (±15V).
Complementary outputs having maximum skew are provided. Applications involve high speed analog to digital converters and zero-crossing detectors in disk file systems.
Diagrams
|
|

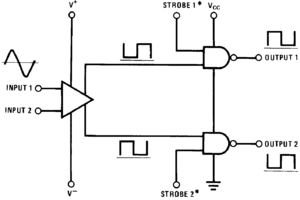

Block Diagram
|
Typical Performance  source：ShenZhen henlito electronic co.,ltd.
