LM25011 42V, 2A Constant On-Time Switching Regulator with Adjustable Current Limit

Part Number(s) (NSID)	Top View	Type	Pins	MSL Rating	Peak Reflow	RoHS Status	CAD Symbols	Models	Package Marking Format
LM25011MY/NOPB		MINI SOIC EXP PAD	10	3	260	Detail	Download	N/A	ZXTT SVUB
LM25011MYX/NOPB		MINI SOIC EXP PAD	10	3	260	Detail	Download	N/A	ZXTT SVUB

PDF

Description

The LM25011 Constant On-time Step-Down Switching Regulator features all the functions needed to implement a low cost, efficient, buck bias regulator capable of supplying up to 2A of load current. This high voltage regulator contains an N-Channel Buck switch, a startup regulator, current limit detection, and internal ripple control. The constant on-time regulation principle requires no loop compensation, results in fast load transient response, and simplifies circuit implementation. The operating frequency remains constant with line and load. The adjustable valley current limit detection results in a smooth transition from constant voltage to constant current mode when current limit is reached, without the use of current limit foldback. The PGD output indicates the output voltage has increased to within 5% of the expected regulation value. Additional features include: Low output ripple, VIN under-voltage lock-out, adjustable soft-start timing, thermal shutdown, gate drive pre-charge, gate drive under-voltage lock-out, and maximum duty cycle limit.

Diagrams

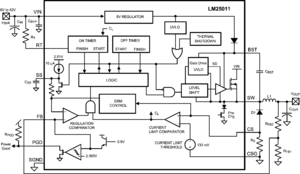

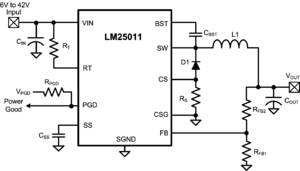

Typical Application click for larger image	Block Diagram click for larger image
Typical Performance click for larger image
