| Part Number(s) (NSID) |
Top View | Type | Pins | MSL Rating | Peak Reflow | RoHS Status |
CAD Symbols | Models | Package Marking Format |
|---|---|---|---|---|---|---|---|---|---|
| LM2594M-12/NOPB LM2594M-12 |
 |
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-12 |
| LM2594M-3.3/NOPB LM2594M-3.3 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-3.3 |
| LM2594M-5.0/NOPB LM2594M-5.0 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-5.0 |
| LM2594M-ADJ/NOPB LM2594M-ADJ |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-ADJ |
| LM2594MX-12/NOPB LM2594MX-12 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-12 |
| LM2594MX-3.3/NOPB LM2594MX-3.3 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-3.3 |
| LM2594MX-5.0/NOPB LM2594MX-5.0 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-5.0 |
| LM2594MX-ADJ/NOPB LM2594MX-ADJ |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2594 M-ADJ |
| LM2594N-12/NOPB LM2594N-12 |
 |
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2594N -12 P+ |
| LM2594N-3.3/NOPB LM2594N-3.3 |
|
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2594N -3.3 P+ |
| LM2594N-5.0/NOPB LM2594N-5.0 |
|
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2594N -5.0 P+ |
| LM2594N-ADJ/NOPB LM2594N-ADJ |
|
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2594N -ADJ P+ |
PDF
Description
The LM2594/LM2594HV series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 0.5A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version, and are packaged in a 8-lead DIP and a 8-lead surface mount package.
Requiring a minimum number of external components, these regulators are simple to use and feature internal frequency compensation†, a fixed-frequency oscillator, and improved line and load regulation specifications.
The LM2594/LM2594HV series operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Because of its high efficiency, the copper traces on the printed circuit board are normally the only heat sinking needed.
A standard series of inductors (both through hole and surface mount types) are available from several different manufacturers optimized for use with the LM2594/LM2594HV series. This feature greatly simplifies the design of switch-mode power supplies.
Other features include a guaranteed ±4% tolerance on output voltage under all conditions of input voltage and output load conditions, and ±15% on the oscillator frequency. External shutdown is included, featuring typically 85 µA standby current. Self protection features include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions.
The LM2594HV is for applications requiring an input voltage up to 60V.
| • | Simple high-efficiency step-down (buck) regulator |
| • | Efficient pre-regulator for linear regulators |
| • | On-card switching regulators |
| • | Positive to Negative convertor |
| • | 3.3V, 5V, 12V, and adjustable output versions |
| • | Adjustable version output voltage range, 1.2V to 37V (57V for the HV version)±4% max over line and load conditions |
| • | Available in 8-pin surface mount and DIP-8 package |
| • | Guaranteed 0.5A output current |
| • | Input voltage range up to 60V |
| • | Requires only 4 external components |
| • | 150 kHz fixed frequency internal oscillator |
| • | TTL Shutdown capability |
| • | Low power standby mode, IQ typically 85 µA |
| • | High Efficiency |
| • | Uses readily available standard inductors |
| • | Thermal shutdown and current limit protection |
Diagrams
Typical Application
|

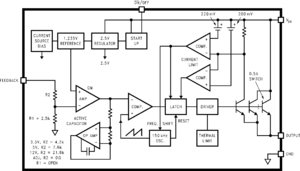

Block Diagram
|
Typical Performance
|
