| Part Number(s) (NSID) |
Top View | Type | Pins | MSL Rating | Peak Reflow | RoHS Status |
CAD Symbols | Models | Package Marking Format |
|---|---|---|---|---|---|---|---|---|---|
| LM2675LD-5.0/NOPB LM2675LD-5.0 |
 |
LLP | 16 | 3 1 |
260 235 |
Detail | Download | N/A |
NS UZXYTT S000FB |
| LM2675LD-ADJ/NOPB LM2675LD-ADJ |
|
LLP | 16 | 3 1 |
260 235 |
Detail | Download | N/A |
NS UZXYTT S000GB |
| LM2675LDX-ADJ/NOPB LM2675LDX-ADJ |
|
LLP | 16 | 3 1 |
260 235 |
Detail | Download | N/A |
NS UZXYTT S000GB |
| LM2675M-12/NOPB LM2675M-12 |
 |
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 M-12 |
| LM2675M-3.3/NOPB LM2675M-3.3 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 M3.3 |
| LM2675M-5.0/NOPB LM2675M-5.0 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 M5.0 |
| LM2675M-ADJ/NOPB LM2675M-ADJ |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 MADJ |
| LM2675MX-12/NOPB LM2675MX-12 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 M-12 |
| LM2675MX-3.3/NOPB LM2675MX-3.3 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 M3.3 |
| LM2675MX-5.0/NOPB LM2675MX-5.0 |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 M5.0 |
| LM2675MX-ADJ/NOPB LM2675MX-ADJ |
|
SOIC NARROW | 8 | 1 1 |
260 235 |
Detail | Download | N/A |
NSZXTT 2675 MADJ |
| LM2675N-12/NOPB LM2675N-12 |
 |
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2675 N-12 |
| LM2675N-3.3/NOPB LM2675N-3.3 |
|
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2675 N-3.3 |
| LM2675N-5.0/NOPB LM2675N-5.0 |
|
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2675 N-5.0 |
| LM2675N-ADJ/NOPB LM2675N-ADJ |
|
MDIP | 8 | 1 1 |
NA NA |
Detail | Download | N/A |
NSUZXYTTE# LM2675 N-ADJ |
PDF
Description
The LM2675 series of regulators are monolithic integrated circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5.0V, 12V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include patented internal frequency compensation (Patent Nos. 5,382,918 and 5,514,947) and a fixed frequency oscillator.
The LM2675 series operates at a switching frequency of 260 kHz, thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Because of its very high efficiency (>90%), the copper traces on the printed circuit board are the only heat sinking needed.
A family of standard inductors for use with the LM2675 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies using these advanced ICs. Also included in the datasheet are selector guides for diodes and capacitors designed to work in switch-mode power supplies.
Other features include a guaranteed ±1.5% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring typically 50 µA stand-by current. The output switch includes current limiting, as well as thermal shutdown for full protection under fault conditions.
To simplify the LM2675 buck regulator design procedure, there exists computer design software, LM267X Made Simple version 6.0.
| • | Simple High Efficiency (>90%) Step-Down (Buck) Regulator |
| • | Efficient Pre-Regulator for Linear Regulators |
| • | Positive-to-Negative Converter |
| • | Efficiency up to 96% |
| • | Available in SO-8, 8-pin DIP and LLP packages |
| • | Computer Design Software LM267X Made Simple (version 6.0) |
| • | Simple and easy to design with |
| • | Requires only 5 external components |
| • | Uses readily available standard inductors |
| • | 3.3V, 5.0V, 12V, and adjustable output versions |
| • | Adjustable version output voltage range: 1.21V to 37V |
| • | ±1.5% max output voltage tolerance over line and load conditions |
| • | Guaranteed 1A output load current |
| • | 0.25 DMOS Output Switch |
| • | Wide input voltage range: 8V to 40V |
| • | 260 kHz fixed frequency internal oscillator |
| • | TTL shutdown capability, low power standby mode |
| • | Thermal shutdown and current limit protection |
Diagrams

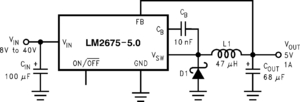

Typical Application
|

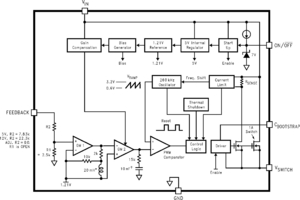

Block Diagram
|
Typical Performance
|
