Features
- 1 A Output Current
- Low Dropout Voltage
- LSTTL/CMOS-Compatible On/Off Control
Less Than 1 µA "Sleep" Current - Internal Foldback Overcurrent Limiting
- Internal Thermal Protection
- Surface-Mount Package
Description
The SI-3025LSA is designed to meet the requirement for increased integration and reliability in low-voltage, high-current, linear regulator applications such as personal computers (PCs) and set-top boxes. Each device incorporates a monolithic low-level reference and control circuit with a high-current pnp transistor in a power multi-chip module (PMCMTM). Regulated output voltages of 1.8 V or 3.3 V are also available.
The high-current pass element provides a low dropout voltage with output current to 1 A. Regulator accuracy of ±2 % and excellent temperature characteristics are provided. The logic-compatible ENABLE input gives the designer complete control over power up, power down, and standby or sleep.

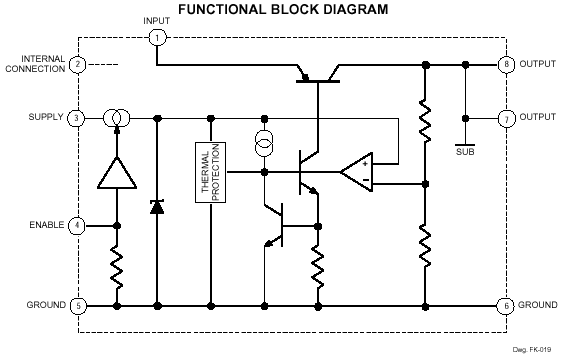

Functional Block Diagram
