ADC081500 High Performance, Low Power, 8-Bit, 1.5 GSPS A/D Converter from the PowerWise® Family


source: | post time:2010-05-06

Part Number(s)
(NSID)
Top View Type Pins MSL Rating Peak Reflow RoHS
Status
CAD Symbols Models Package
Marking
Format
ADC081500CIYB/NOPB
ADC081500CIYB
LQFP EXP PAD 128 3
3
260
260
Detail Download
adc081500.ibs
NSUZXYYTTE#
ADC081500
CIYB

PDFClick link to Download

Features

Internal Sample-and-Hold
Single +1.9V ±0.1V Operation
Choice of SDR or DDR output clocking
Multiple ADC Synchronization Capability
Guaranteed No Missing Codes
Serial Interface for Extended Control
Fine Adjustment of Input Full-Scale Range and Offset
Duty Cycle Corrected Sample Clock

Description

The ADC081500 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sample rates up to 1.7 GSPS. Consuming a typical 1.2 W at 1.5 GSPS from a single 1.9 Volt supply, this device is guaranteed to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.3 ENOB with a 748 MHz input signal and a 1.5 GHz sample rate while providing a 10 -18 B.E.R. Output formatting is offset binary and the LVDS digital outputs are compatible with IEEE 1596.3-1996, with the exception of an adjustable output offset voltage between 0.8V and 1.2V.

The converter output has a 1:2 demultiplexer that feeds two LVDS buses and reduces the output data rate on each bus to one-half the sample rate.

The converter typically consumes less than 3.5 mW in the Power Down Mode and is available in a 128-lead, thermally enhanced exposed pad LQFP and operates over the Industrial (-40°C TA +85°C) temperature range.

Key Specification

Resolution

8 Bits

Max Conversion Rate

1.5 GSPS (min)

Bit Error Rate

10 -18 (typ)

ENOB @ 748 MHz Input

7.3 Bits (typ)

DNL

±0.15 LSB (typ)

Power Consumption



Operating

1.2 W (typ)

Power Down Mode

3.5 mW (typ)

Applications

Direct RF Down Conversion
Digital Oscilloscopes
Satellite Set-top boxes
Communications Systems
Test Instrumentation

Diagrams

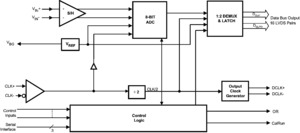

Block Diagram
click for larger image





Typical Performance
*click for larger image
