Description
The A8697 is a constant off-time current mode step-down regulator with a wide input voltage range. Regulation voltage is set by external resistors, to output voltages as low as 0.8 V.
The A8697 includes an integrated power DMOS switch to reduce the total solution footprint. It also features internal compensation, allowing users to design stable regulators with minimal design efforts.
The off-time can be set with an external resistor, allowing flexibility in inductor selection. Additionally, the A8697 has a logic level enable pin which can shut the device down and put it into a low quiescent current mode for power sensitive applications.
The A8697 is supplied in a low-profile 8-lead SOIC with exposed pad (package LJ). Applications include:
- Applications with 8 to 25 V input
- Consumer electronics, networking equipment
- 12 V lighter-powered applications (portable DVD, etc.)
- Point of Sale (POS) applications
Gerber Files
- A8697 Gerber File(ZIP)
Gerber files are for reference only. Users should optimize the PCB layout and components for their specific application. Evaluation Board for A8698 is available upon request. Please contact your local representative.

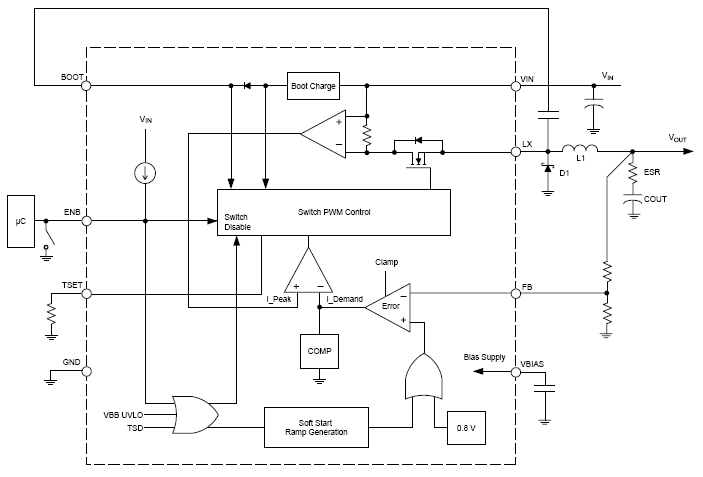

Functional Block Diagram
Features
- 8 to 25 V input range
- Integrated DMOS switch
- Adjustable fixed off-time
- Adjustable output
