MAX6001, MAX6002, MAX6003, MAX6004, MAX6005 Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 208kB)
Download	E-Mail

The MAX6001-MAX6005 family of SOT23, low-cost series voltage references meets the cost advantage of shunt references and offers the power-saving advantage of series references, which traditionally cost more. Unlike conventional shunt-mode (two-terminal) references that must be biased at the load current and require an external resistor, these devices eliminate the need for an external resistor and offer a supply current that is virtually independent of the supply voltage.

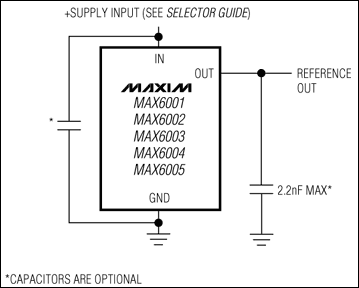

These micropower, low-dropout, low-cost devices are ideal for high-volume, cost-sensitive 3V and 5V battery- operated systems with wide variations in supply voltage that require very low power dissipation. Additionally, these devices are internally compensated and do not require an external compensation capacitor, saving valuable board area in space-critical applications.

Key Features		Applications/Uses
1% max Initial Accuracy 100ppm/��C max Temperature Coefficient 45µA max Quiescent Supply Current 0.8µA/V Supply Current Variation with V_IN ��400µA Output Source and Sink Current 100mV Dropout at 400µA Load Current 0.12µV/µA Load Regulation 8µV/V Line Regulation Stable with C_LOAD = 0 to 2.2nF		Cell Phones Hard Disk Drive Notebook Computers Pagers PDAs, GPSs, DMMs Portable Battery-Powered Equipment
