First SOT23 Digital Potentiometer
| Status |
| Active: In Production. |
| Description | ||||||
These parts are ideal for applications requiring digitally controlled resistors. Three resistance values are available for each part type: 50kΩ,100kΩ, and 200kΩ. A nominal resistor temperature coefficient of 50ppm/°C end-to-end and only 5ppm/°C ratiometric makes the MAX5160 ideal for applications requiring a low-temperature-coefficient variable resistor, such as low-tempco, adjustable-gain circuit configurations. The MAX5160 is available in an 8-pin µMAX package, and the MAX5161 is available in a 6-pin SOT23 package. Both devices are guaranteed over the extended-industrial temperature range (-40°C to +85°C). | ||||||
Download
E-Mail
| Key Specifications: Digital Potentiometers | ||||||||||||||||||||
| Part Number | Taper | POTs | Control Interface | Wiper Memory | Steps | REND-TO-END (kΩ) |
Res. Tol. (%) |
Temp. Coeff. (ppm/°C) |
Wiper Resistance (Ω) |
ICC @5V (µA) |
Smallest Available Pckg. (mm2) |
Price | ||||||||
| typ | typ | max | max w/pins | See Notes | ||||||||||||||||
| MAX5160 | Linear | 1 | 3-Wire Serial | Volatile | 32 |
|
25 | 50 | 400 | 10 | 16.2 | $0.55 @1k | ||||||||
| MAX5161 | 8.3 | $0.48 @1k | ||||||||||||||||||
| See All Digital Potentiometers (123) | ||||||||||||||||||||
| Diagram |

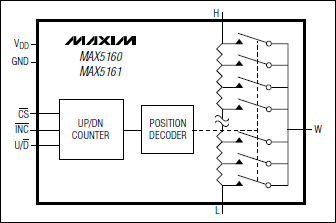

 Functional Diagram |
