MAX504, MAX515 5V, Low-Power, Voltage-Output, Serial, 10-Bit DACs

Single, Serial, Voltage-Output DAC in a SO Package

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 184kB)
Download	E-Mail

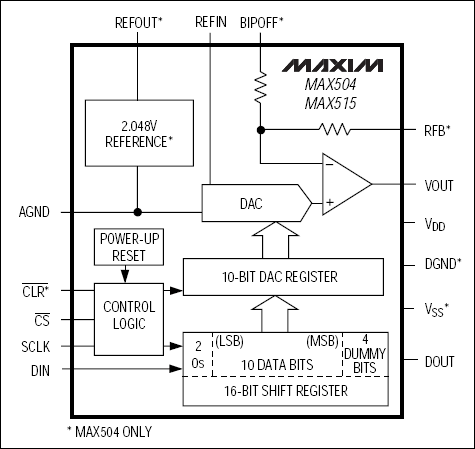

The MAX504/MAX515 are low-power, voltage-output, 10-bit digital-to-analog converters (DACs) specified for single +5V power-supply operation. the MAX504 can also be operated with ��5V supplies. The MAX515 draws only 140µA, and the MAX504 (with internal reference) draws only 260µA. The MAX515 comes in 8-pin DIP and SO packages, while the MAX504 comes in 14-pin DIP and SO packages. Both parts have been trimmed for offset voltage, gain, and linearity, so no further adjustment is necessary.

The MAX515's buffer is fixed at a gain of 2. The MAX504's internal op amp may be configured for a gain of 1 or 2, as well as for unipolar or bipolar output voltages. The MAX504 can also be used as a four-quadrant multiplier without external resistors or op amps. For parallel data inputs, see the MAX503 data sheet. For a hardware and software compatible 12-bit upgrade, refer to the MAX531/MAX538/MAX539 data sheet.

Key Features		Applications/Uses
Operate from Single +5V Supply Buffered Voltage Output Internal 2.048V Reference (MAX504) 140µA Supply Current (MAX515) INL = ��1/2LSB (max) Guaranteed Monotonic Over Temperature Flexible Output Ranges: 0V to VDD (MAX504/MAX515) VSS to VDD (MAX504) 8-Pin SO/DIP (MAX515 Power-On Reset Serial Data Output for Daisy-Chaining		Audio Systems Battery-Operated/Remote Industrial Controls Battery-Powered Test Instruments Digital Gain and Offset Control Machine- and Motion-Control Devices
