| Status | |||
| Part Number | Status | Replacement | Explanation |
| MAX3264 | This product is Not Recommended for New Designs. | ||
| MAX3265 | This product is Not Recommended for New Designs. See Ordering Informationfor recommended replacements. | MAX3272A | Improved Performance and Features |
| MAX3268 | Active: In Production. | ||
| MAX3269 | Active: In Production. | ||
| MAX3765 | This product is Not Recommended for New Designs. | ||
| MAX3768 | Active: In Production. | ||
| Data Sheet |
FULL DATA SHEET  Download  E-Mail |
An evaluation kit is available: MAX3264EVKIT, MAX3265EVKIT, MAX3268EVKIT, MAX3269EVKIT
| Key Specifications: Limiting Amplifiers | ||||||||||||||||
| Part Number | Target Oper. Range (Gbps) |
Data Rate (Mbps) |
Data Rate (Mbps) |
VSUPPLY (V) |
ICC (mA) |
I/O Type | Input Sens. (mV) |
LOS Sens. (mV) |
Edge Speed (ps) |
EV Kit | Package/Pins | Smallest Available Pckg. (mm2) |
Price | |||
| min | max | typ | min | max | max w/pins | See Notes | ||||||||||
| MAX3268 | 1 to 4.5 | 1062 | 1250 |
|
62 | PECL | 5 | 1.2 | 300 | Yes |
|
26 | $4.00 @1k | |||
| MAX3269 | 2125 | 2500 | 76 | 10 | 2.2 | 150 | Yes |
|
$4.40 @1k | |||||||
| MAX3768 | 1062 | 1250 | 39 | 5 | 1.2 | 300 | - |
|
$2.27 @1k | |||||||
| See All Limiting Amplifiers (17) | ||||||||||||||||
| Diagram |

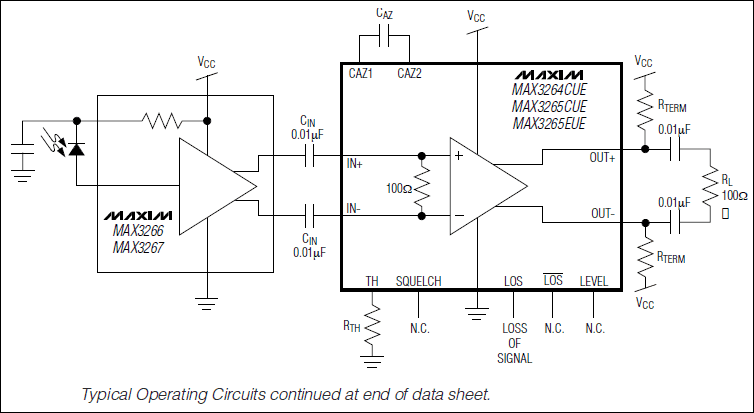

 Typical Operating Circuit |
