| Description | ||||||
The MAX312/MAX313/MAX314 are quad, single-pole/single-throw (SPST) analog switches. The MAX312 is normally closed (NC), and the MAX313 is normally open (NO). The MAX314 has two NC switches and two NO switches. All three devices operate from a single supply of +4.5V to +30V or from dual supplies of ±4.5V to ±20V. | ||||||
Download
| Key Features | Applications/Uses | |
|
|
| Key Specifications: Switches and Multiplexers (Mid Voltage) | |||||||||||||||||||||||||||||
| Part Number | Functions | Config. | Channels | Normal Position | VSUPPLY (Single) (V) |
VSUPPLY (Single) (V) |
VSUPPLY (Dual) (±V) |
VSUPPLY (Dual) (±V) |
RON (Ω) |
IL(OFF) (nA) |
tON (ns) |
tOFF (ns) |
QINJECTION (pC) |
CON (pF) |
COFF (pF) |
Price | |||||||||||||
| min | max | min | max | max | max | min | max | max | max | See Notes | |||||||||||||||||||
| MAX312 | Switch | SPST | 4 | Closed | 10 | 30 | 4.5 | 20 | 10 | 0.5 | 225 | 185 | 30 | 47 | 15 | $2.20 @1k | |||||||||||||
| MAX313 | Open | $2.20 @1k | |||||||||||||||||||||||||||
| MAX314 | Open/Closed | $2.20 @1k | |||||||||||||||||||||||||||
| See All Switches and Multiplexers (Mid Voltage) (297) | |||||||||||||||||||||||||||||
| Diagram |

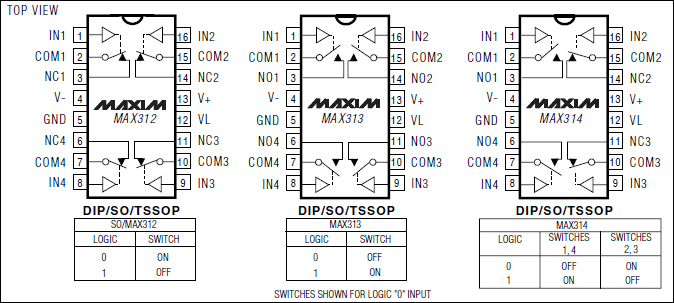

 Pin Configuration |
