MAX2361, MAX2363, MAX2365 Complete Dual-Band Quadrature Transmitters

Highly Integrated Dual-Band Quadrature Transmitters for Cell Phones

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 468kB)
Download

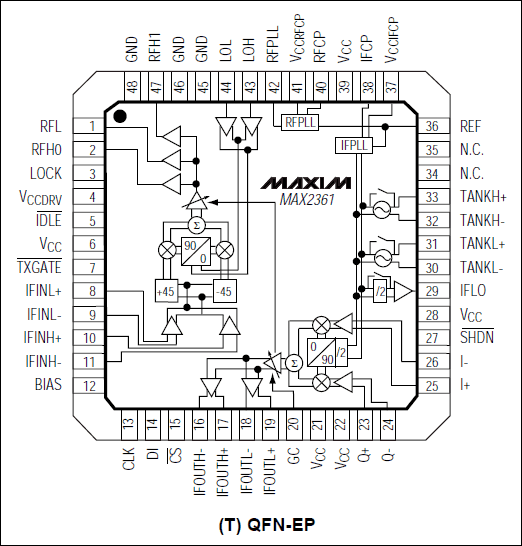

The MAX2361 dual-band, triple-mode complete transmitter for cellular phones represents an integrated and architecturally advanced solution for this application. The device takes a differential I/Q baseband input and converts it up to IF through a quadrature modulator and IF variable-gain amplifier (VGA). The signal is then routed to an external bandpass filter and upconverted to RF through an image-reject mixer and RF VGA. The signal is further amplified with an on-chip PA driver. An IF synthesizer, an RF synthesizer, a local oscillator (LO) buffer, and a 3-wire programmable bus complete the basic functional blocks of this IC. The MAX2363 supports single-band, single- mode (PCS) operation. The MAX2365 supports single- band cellular dual-mode operation.

The MAX2361 enables architectural flexibility because of its two IF voltage-controlled oscillators (VCOs), two IF ports, two RF LO input ports, and three PA driver output ports. The devices allow the use of a single receive IF frequency and split-band PCS filters for optimum out-ofband noise performance. The low-noise PA drivers allow up to three RF SAW filters to be eliminated. Select a mode of operation by loading data on the SPI™/QSPI™/MICROWIRE™-compatible 3-wire serial bus. Charge-pump current, IF/RF gain balancing, standby, shutdown plus additional functions, are also controlled with the serial interface.

The MAX2361/MAX2363/MAX2365 come in a 48-pin TQFN-EP and QFN-EP package and are specified for the extended (-40��C to +85��C) temperature range.

An evaluation kit is available: MAX2361EVKIT, MAX2363WEVKIT

NOTE: This product requires use of the following:

MAX231x, MAX236x EVKIT PC-Control Software

Key Features		Applications/Uses
Dual-Band, Triple-Mode Operation +9dBm Linear Output Power 100dB Power-Control Range Supply Current Drops as Output Power is Reduced Dual Synthesizer for IF and RF LO Dual On-Chip IF VCO QSPI/SPI/MICROWIRE-Compatible 3-Wire Bus Digitally Controlled Operational Modes Single Sideband Upconverter Eliminates SAW Filters Directly Drives Power Amplifier		CDMA, cdma2000®, TDMA, WCDMA, GAIT Mobile Phones GAIT Mobile Phones High-Speed Data Modems Satellite Phones Wireless Data Links (WAN/LAN) Wireless Local Area Networks (WLANs)
