| 状态 |
| 状况：生产中。 |
| 概述 | ||||||
The 2-wire serial interface accepts standard System Management Bus (SMBus™) commands such as Write Byte, Read Byte, Send Byte, and Receive Byte to read the temperature data and program the alarm thresholds and conversion rate. The MAX6657/MAX6658/MAX6659 can function autonomously with a programmable conversion rate, which allows the control of supply current and temperature update rate to match system needs. For conversion rates of 4Hz or less, the temperature is represented in extended mode as 10 bits + sign with a resolution of 0.125°C. When the conversion rate is faster than 4Hz, output data is 7 bits + sign with a resolution of 1°C. The MAX6657/MAX6658/MAX6659 also include an SMBus timeout feature to enhance system reliability. Remote accuracy is ±1°C between +60°C and +100°C with no calibration needed. The MAX6657 measures temperatures from 0°C to +125°C and the MAX6658/MAX6659 from -55°C to +125°C. The MAX6659 has the added benefit of being able to select one of three addresses through an address pin, and a second over-temperature alarm pin for greater system reliability. | ||||||
下载
| 关键特性 | 应用/使用 | |
|
|
| Key Specifications: Temperature Sensors | ||||||||||||||||
| Part Number | Sensor Type | Alarm Output | Functions | Interface | Remote Chan. | Accuracy (±°C) |
Parasite Pwr. | Temp. Thresh. | Temp. Resolution (bits) |
Oper. Temp. (°C) |
Smallest Available Pckg. (mm2) |
Price | ||||
| max w/pins | See Notes | |||||||||||||||
| MAX6657 | Remote |
|
Remote & Local Sensor | 2-Wire/I2C/SMBus | Single | 1 | No | Programmable | 11 | -55 to +125 | 30.9 | $1.89 @1k | ||||
| MAX6658 | $1.95 @1k | |||||||||||||||
| MAX6659 | $2.25 @1k | |||||||||||||||
| 查看所有Temperature Sensors (99) | ||||||||||||||||
| 图表 |

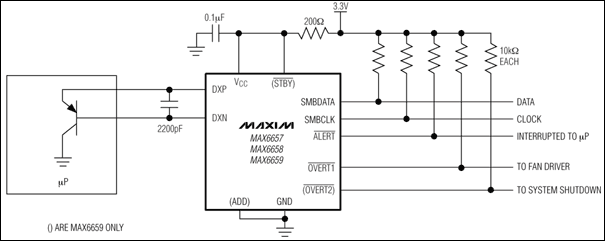

 典型工作电路 |
