1-Wire, Dual-Channel, Addressable Switch Features Open-Drain, Programmable I/O Pins
| Status |
| Part Number |
Status |
| DS2413 |
Active: In production, but some versions are no longer available. See Ordering Information. |
| Description |
|
The DS2413 is a dual-channel programmable I/O 1-Wire® chip. The PIO outputs are configured as open-drain and provide up to 20mA continuous sink capability and off-state operating voltage up to 28V. Control and sensing of the PIO pins is performed with a dedicated device-level command protocol. To provide a high level of fault tolerance in the end application, the 1-Wire I/O and PIO pins are all capable of withstanding continuous application of voltages up to 28V max. Communication and operation of the DS2413 is performed with the single contact Maxim 1-Wire serial interface. |
An evaluation kit is available: DS9090K
| Key Features |
|
Applications/Uses |
- Open-Drain Programmable I/O Pins
- PIO Pins Support 20mA max Continuous Current Sink
- Supports 28V (max) PIO Pin Operating Voltage
- On-Resistance of PIO Pulldown Transistor 20Ω max; OFF Resistance 1MΩ min
- Parasitic Power Supply Through 1-Wire
- Communicates to Host with a Single Digital Signal at 14.9kbps or 100kbps Using 1-Wire Protocol
- Unique 64-bit ROM Serial Number Factory Lasered Into Each Device
- Switchpoint Hysteresis and Filtering to Optimize Performance in the Presence of Noise
- 1-Wire I/O Pin Supports 28V Absolute Maximum DC Level for Fault Conditions
- Operates Over a Wide 1-Wire Voltage Range of 2.8V to 5.25V from 0°C to +70°C
- High ESD Immunity of 1-Wire I/O Pin: 8kV HBM Typical
- TSOC and TDFN Packages Available
|
|
- Accessory Identification and Control
- General Purpose Input/Output
- Industrial Controllers
- Key-Pick Systems
- LED Control
- System Monitoring
|
| Diagram |

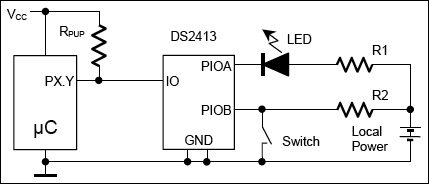

Typical Operating Circuit |
