DS1402D-10, DS1402D-11, DS1402D-17, DS1402D-3 iButton Probe Component Parts

source�� | post time��2010-01-14

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 232kB)
Download

The four component parts that are used to construct the Blue-Dot™ iButton® reader found in the DS1402D-DR8 and DS1402D-DB8 are described here. Diagrams 1 through 4 show the individual part dimensions. This document also describes how to assemble the Blue-Dot given the sub-parts listed in Table 1. The Blue-Dot can be assembled in the three easy steps described in the Assembly Instructions section.

Key Features

Spring-Mounted iButton Reader
Momentary Contact for Both F3 and F5 Style
iButtons or Dwelled Contact for F5 Only
Convenient Tactile Feedback System for Dwelled
iButton Contact

Key Specifications: iButton Readers and Adapters

Part Number

Overview

Features

See Notes

DS1402D-10

iButton Probe Blue Dot Subassembly

Blue Dot

F5 Package Compatible

DS1402D-11

DS1402D-17

DS1402D-3

See All iButton Readers and Adapters (29)

Diagram

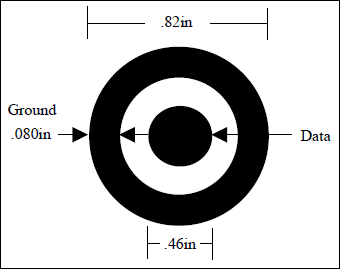

DS1402D-10, DS1402D-11, DS1402D-17, DS1402D-3: Mounting Pad Layout

Mounting Pad Layout
