DS1402-BP8, DS1402-BR8, DS1402-RP3, DS1402-RP8, DS1402D-DB8, DS1402D-DR8 1-Wire Network Cables


Part Number	Status
DS1402-BP8	Active: In production, but some versions are no longer available.
DS1402-BR8	Active: In production, but some versions are no longer available. .
DS1402-RP3	Active: In production, but some versions are no longer available.
DS1402-RP8	Active: In production, but some versions are no longer available.
DS1402D-DB8	Active: In production, but some versions are no longer available.
DS1402D-DR8	Active: In production, but some versions are no longer available.

Description

FULL DATA SHEET (PDF, 84kB)
Download

Using four basic types of connectors, 1-Wire® RJ-11, iButton®, Touch-and-Hold Probe, and Blue Dot™ Receptor, the DS1402 series of 1-Wire network cables provides connectivity for iButtons. The cables are designed to connect any USB, serial, or parallel port 1-Wire adapter to any iButton. Both, the iButton probe cables and the Blue Dot receptor cables can touch any iButton, but can only hold the F5 version iButtons. The DS1402-BR8+ is the only cable that connects to the DS1401 iButton Holder. Applications of the DS1402-series 1-Wire network cables range from software protection and access control to asset management and thermal monitoring through handheld computers.

Key Features

Coiled cables to connect iButtons to 1-Wire networks
Convenient, off-the-shelf connectivity

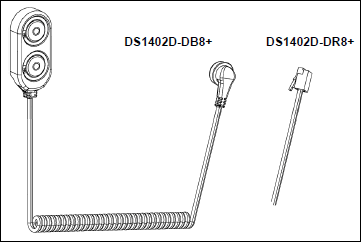

Blue Dot Dual Receptors for momentary (F3/F5 MicroCan) or dwelled contact (F5 MicroCan only) with adhesive pad to mount on objects (DS1402D-DB8+, DS1402D-DR8+, each 2.4m max.)
Touch-and-Hold Probes DS1402-BP8+, DS1402-RP3+ and DS1402-RP8+ for momentary touch (F3/F5 MicroCan only) in 2.4m length max.
iButton cable (DS1402-BR8) to connect DS1401 iButton Holder to USB or serial port 1-Wire adapters.
Can be used with any Dallas Semiconductor port adapter
