DS9106S-PK DS9106S iButton Halo

Status
Part Number	Status
DS9106L	Active: In production, but some versions are no longer available.
DS9106L-BL	Active: In Production.
DS9106L-GN	Active: In production, but some versions are no longer available.
DS9106L-OG	This product is No Longer Available.
DS9106L-PK	Active: In production, but some versions are no longer available.
DS9106L-WH	Active: In production, but some versions are no longer available.
DS9106L-YL	Active: In production, but some versions are no longer available.
DS9106S	Active: In Production.
DS9106S-GN	Active: In production, but some versions are no longer available.
DS9106S-OG	This product is No Longer Available.
DS9106S-PK	Active: In production, but some versions are no longer available.
DS9106S-WH	This product is No Longer Available.
DS9106S-YL	Active: In production, but some versions are no longer available.

Description

FULL DATA SHEET (PDF, 140kB)
Download

The DS9106 iButton® halos are 0.25mm, thin vinyl highlighters that slide over an iButton that is to be labeled with text, picture, or numeric information. The halo is retained by a friction fit to the iButton it is pressed onto and one or two DS9096P double-sided adhesive pads.

The halo itself is blank. Readable graphics are added using commercially available label printers such as the P-Touch™ series of products from BROTHER and the VARITRONICS EasyStep™ Label Printers.

These manufacturers also offer software support for IBM®- and MAC-compatible computers. For best visibility and contrast, the labels should be printed black on transparent film. With their adhesive backing, they then mount on the fluorescent-colored iButton halo.

Key Features

Slides over iButton and highlights with a color
Color-coded tab accepts transparent computer generated label
Improves the visibility of the iButton for quick sighting
Available in six bright colors
20mm (DS9106S) and 60mm (DS9106L) usable tail length for legends
Uses DS9096P adhesive pads for securing the tail
1000 labels per bag

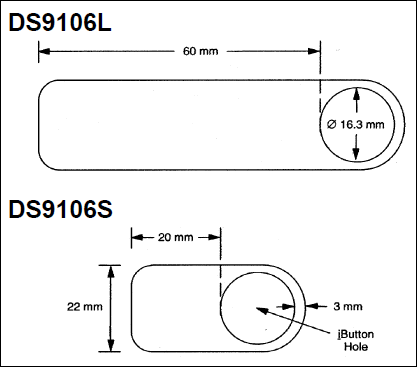

Diagram

DS9106L, DS9106L-BL, DS9106L-GN, DS9106L-OG, DS9106L-PK, DS9106L-WH, DS9106L-YL, DS9106S, DS9106S-GN, DS9106S-OG, DS9106S-PK, DS9106S-WH, DS9106S-YL: iButton Halo Types

iButton Halo Types
