| Status |
| Part Number |
Status |
| DS9094F |
Active: In production, but some versions are no longer available. . |
| DS9094FS |
Active: In Production. |
| Description |
|
The DS9094F iButton® PCB Clip holds an iButton and connects to a printed circuit board. By deflecting the spring clip in the molded housing, an iButton can be inserted and extracted without special tools. If reverse insertion is attempted, the beveled edge on the housing prevents contact. |
| Key Features |
- Low-cost holder for F5 size iButton (see DS9094SM for F3 holder)
- Printed circuit board mount
- Contacts are gold plated
- Flammability rating: UL94V-O
- Two versions:
- DS9094F for F5 size iButton
- DS9094FS for surface mounting F5 size iButton
|

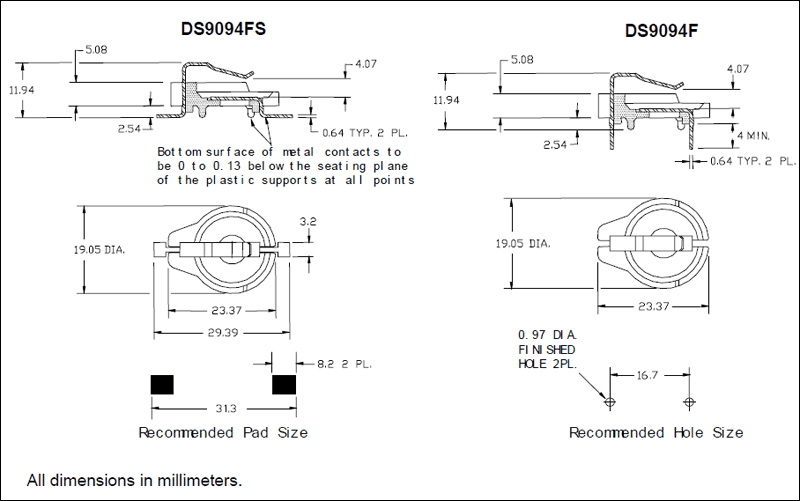

| Diagram |
iButton PCB Clip |
