MAX8798 Internal-Switch Boost Regulator with Integrated 3-Channel Scan Driver for TFT LCDs

High Integration, High Efficiency Power Management IC for LCD Displays Saves Space and Cost

Description

FULL DATA SHEET (PDF, 612kB) Download    The MAX8798 includes a high-performance, step-up regulator; a high-speed operational amplifier; a digitally adjustable VCOM calibration device with nonvolatile memory; an I²C interface; and a high-voltage, level-shifting scan driver. The device is optimized for thin-film transistor (TFT) liquid-crystal display (LCD) applications. The step-up DC-DC converter provides the regulated supply voltage for panel source driver ICs. The high switching frequency allows the use of ultra-small inductors and ceramic capacitors. The current-mode control architecture provides fast transient response to pulsed loads typical of source driver loads. The step-up regulator features soft-start and current limit. The high-current operational amplifier is designed to drive the LCD backplane (VCOM). The amplifier features high output current (¡À150mA), fast slew rate (45V/µs), wide bandwidth (20MHz), and rail-to-rail inputs and outputs. The programmable VCOM calibrator is externally attached to the VCOM amplifier¡¯s resistive voltage-divider and sinks a programmable current to adjust the VCOM output-voltage level. An internal 7-bit digital-to-analog converter (DAC) controls the sink current. The DAC is ratiometric relative to BOOST and is guaranteed to be monotonic over all operating conditions. The calibrator IC includes an EEPROM to store the desired VCOM voltage level. The 2-wire I²C interface between the LCD panel and the programming circuit minimizes panel connector lead count and simplifies production equipment. The high-voltage, level-shifting scan driver is designed to drive the TFT panel gate drivers. Its three outputs swing 65V (maximum) between +45V (maximum) and -25V (minimum) and can swiftly drive capacitive loads. To save power, the two complementary outputs are designed to allow charge sharing during state changes. The MAX8798 is available in a 36-pin, thin QFN package with a maximum thickness of 0.8mm for ultra-thin LCD panels.

An evaluation kit is available:  MAX8798EVCMAXQU+, MAX8798EVKIT+

NOTE: This product requires use of the following:

MAX8798 EVKIT Software

Key Features		Applications/Uses
1.8V to 5.5V IN Supply Voltage Range 1.8V to 4.0V VDD Input Voltage Range 1.2MHz Current-Mode Step-Up Regulator Fast Transient Response Built-In 20V, 1.9A, 150m¦¸ MOSFET High-Speed (20MHz) Operational Amplifier ¡À150mA Output Current High-Voltage Drivers with Scan Logic +45V to -25V Outputs 65V (maximum) Swing Output Charge Sharing Programmable VCOM Calibrator 7-Bit Adjustable Current-Sink Output I²C Interface EEPROM Setting Memory Thermal-Overload Protection		LCD Monitor Panels Notebook Computer Displays



Key Specifications:  Multifunction PMICs

Part Number

Primary Topology

Monitor/Control Features

DC-DC/Power Features

LCD/LED/Flash/CCD Features

VIN (V)

VIN (V)

VOUT (V)

VOUT (V)

Max. IOUT (A)

Max. IOUT (A)

Oper. Freq. (kHz)

Package/Pins

Smallest Available Pckg. (mm2)

Price

min

max

min

max

¡Ý

¡Ü

max w/pins

See Notes

MAX8798

Step-Up

Output OVP Output UVP Serial Interface Shutdown

Current Limit Fixed Freq./PWM Internal Pwr. FETs Soft Start

Scan Driver TFT Bias VCOM Buffer

1.8

5.5

1.23

18

0.4

0.4

1200

TQFN/36

37.2

$7.50 @1k

See All Multifunction PMICs (83)

Diagram

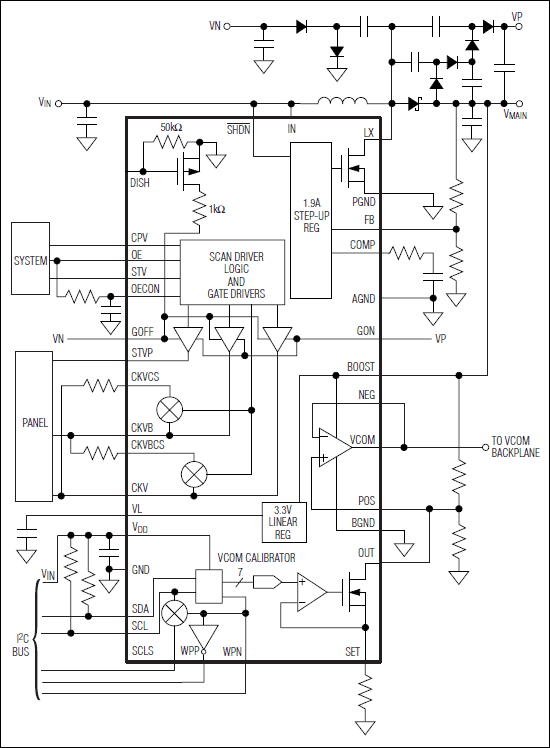

Simplified Operating Circuit
