MAX8614A, MAX8614B Dual-Output (+ and -) DC-DC Converters for CCD

Small, 3mm x 3mm TDFN Package

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 392kB)
Download

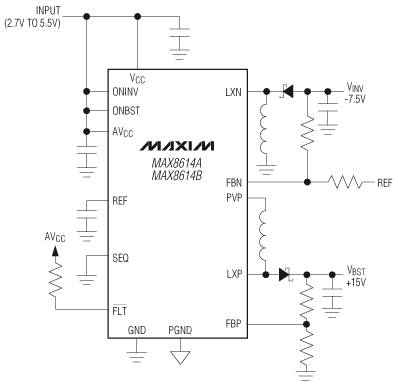

The MAX8614A/MAX8614B dual-output step-up DC-DC converters generate both a positive and negative supply voltage that are each independently regulated. The positive output delivers up to 50mA while the inverter supplies up to 100mA with input voltages between 2.7V and 5.5V. The MAX8614A/MAX8614B are ideal for powering CCD imaging devices and displays in digital cameras and other portable equipment.

The MAX8614A/MAX8614B generate an adjustable positive output voltage up to +24V and a negative output down to 16V below the input voltage. The MAX8614B has a higher current limit than the MAX8614A. Both devices operate at a fixed 1MHz frequency to ease noise filtering in sensitive applications and to reduce external component size.

Additional features include pin-selectable power-on sequencing for use with a wide variety of CCDs, True Shutdown™, overload protection, fault flag, and internal soft-start with controlled inrush current.

The MAX8614A/MAX8614B are available in a spacesaving 3mm x 3mm 14-pin TDFN package and are specified over the -40��C to +85��C extended temperature range.

An evaluation kit is available: MAX8614EVKIT

Key Features		Applications/Uses
Dual Output Voltages (+ and -) Adjustable Up to +24V and Down to -10V at 5.5V_IN Output Short/Overload Protection True Shutdown on Both Outputs Controlled Inrush Current During Soft-Start Selectable Power-On Sequencing Up to 90% Efficiency 1µA Shutdown Current 1MHz Fixed-Frequency PWM Operation Fault-Condition Flag Thermal Shutdown Small, 3mm x 3mm, 14-Pin TDFN Package		Camcorders and Portable Multimedia CCD Bias Supplies and OLED Displays Digital Cameras PDAs and Smartphones
