| Status |
| Active: In Production. |
| Description |
The MAX1886 is a high-current operational transconductance amplifier. The MAX1886 is ideal for driving the backplane of an active matrix, dot inversion thin film transistor (TFT) liquid crystal display (LCD). The MAX1886's high >500mA peak-current drive capability provides fast response to pulsed load conditions. The MAX1886 is stable from 0.47µF to an unlimited amount of output capacitance.
The MAX1886 is available in the low-profile (1.1mm max) 5-pin Thin SOT23 package and fully specified over the -40°C to +85°C extended temperature range. |
| Key Features |
|
Applications/Uses |
- Stable with 0.47µF to Unlimited Amount of Output Capacitance
- Over 500mA Peak Drive Current
- Excellent Settling Characteristics with Capacitive Load
- +4.5V to +13V Input Supply
- 0.45mA Quiescent Current
- Thermal Fault Protection
- Thin SOT23-5 Package (1.1mm max)
|
|
- Monitor LCD Panels
- Notebook LCD Panels
|
| Diagram |

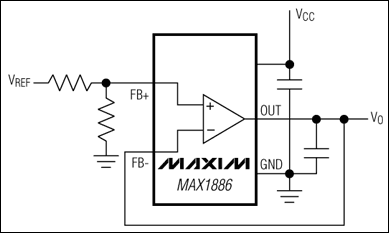

Typical Operating Circuit |
