| Status |
| Active: In Production. |
| Description | ||||||
The MAX6968 uses the industry-standard shift-register-plus-latch-type serial interface. The driver accepts data shifted into an 8-bit shift register using data input DIN and clock input CLK. Input data appears at the output DOUT eight clock cycles later to allow cascading of multiple MAX6968s. The latch-enable input LE loads the 8 bits of shift register data into an 8-bit output latch to set which LEDs are on and which are off. The output-enable input active-low OE gates all eight outputs on and off, and is fast enough to be used as a PWM input for LED intensity control. For applications requiring LED fault detection, refer to the MAX6977 data sheet that automatically detects open-circuit LEDs. For safety-related applications requiring a watchdog timer, refer to the MAX6978 data sheet that includes a fail-safe feature that blanks the display if the serial interface becomes inactive for more than 1s. The MAX6968 is one of a family of 12 shift-register-plus-latch-type LED drivers. The family includes 8-port and 16-port types, with 5.5V- or 36V-rated LED outputs, with and without open-circuit LED detection and watchdog. All versions operate from a 3V to 5.5V supply, and are specified over the -40°C to +125°C temperature range. | ||||||
Download
| Key Features | Applications/Uses | |
|
|
| Key Specifications: Display Drivers | |||||||||||||||||
| Part Number | LCD or LED | Display Type | Output Format | Display Type | Interface | Segment Blinking | VSUPPLY (V) |
VSUPPLY (V) |
Price | ||||||||
| min | max | See Notes | |||||||||||||||
| MAX6968 | LED | 8-Segment | Any digit type | Common Anode | Serial 4-Wire 25Mbit | No | 3 | 5.5 | $1.00 @1k | ||||||||
| See All Display Drivers (52) | |||||||||||||||||
| Diagram |

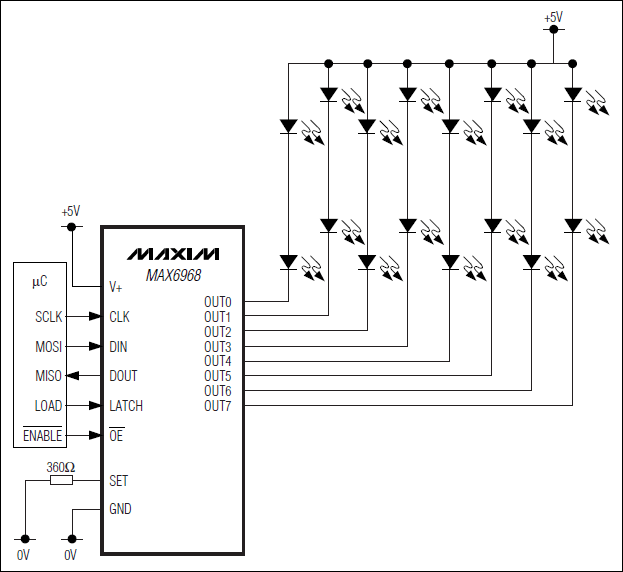

 Typical Application Circuit |
