MAX6952

4-Wire Interfaced, 2.7V to 5.5V, 4-Digit 5 x 7 Matrix LED Display Driver

Status

Active: In Production.

Description

FULL DATA SHEET (PDF, 400kB)
Download

The MAX6952 is a compact cathode-row display driver that interfaces microprocessors to 5 x 7 dot-matrix LED displays through an SPI™-compatible serial interface. The MAX6952 drives up to four digits (140 LEDs).

Included on chip are an ASCII 104-character font, multiplex scan circuitry, column and row drivers, and static RAM that stores each digit, as well as font data for 24 user-definable characters. The segment current for the LEDs is set by an internal digit-by-digit digital brightness control.

The device includes a low-power shutdown mode, segment blinking (synchronized across multiple drivers, if desired), and a test mode that forces all LEDs on. The LED drivers are slew rate limited to reduce EMI. For a 2-wire interfaced version, refer to the MAX6953 data sheet. An EV kit is available for the MAX6952.

An evaluation kit is available: MAX6952EVKIT

Key Features

Applications/Uses

High-Speed 26MHz with SPI-/QSPI-™/ MICROWIRE™-Compatible Serial Interface
2.7V to 5.5V Operation
Drives Four Monocolor or Two Bicolor Cathode-Row 5 x 7 Matrix Displays
Built-In ASCII 104-Character Font
24 User-Definable Characters Available
Automatic Blinking Control for Each Segment
36µA Low-Power Shutdown (Data Retained)
16-Step Digital Brightness Control
Display Blanked on Power-Up
Slew-Rate-Limited Segment Drivers for Lower EMI
36-Pin SSOP and 40-Pin DIP Packages
Underwriters Laboratories (UL®) Recognized

Audio/Video Equipment
Gaming Machines
Industrial Displays
Medical Equipment
Message Boards

Diagram

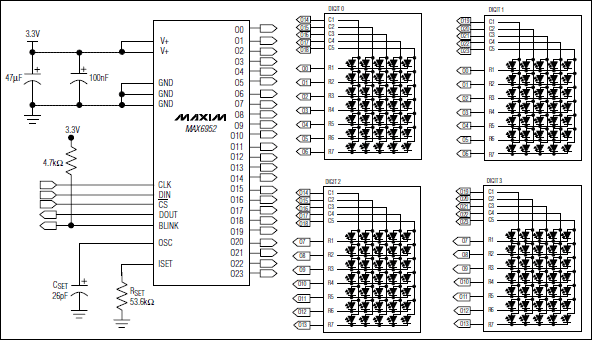

Typical Application Circuit
