2-Wire Interfaced, 2.7V to 5.5V, 4-Digit 5 x 7 Matrix LED Display Driver
| Status |
| Active: In Production. |
| Description |
The MAX6953 is a compact cathode-row display driver that interfaces microprocessors to 5 x 7 dot-matrix LED displays through an I²C-compatible serial interface. The MAX6953 drives up to four digits (140 LEDs).
Included on-chip are an ASCII 104-character font, multiplex scan circuitry, column and row drivers, and static RAM that stores each digit, as well as font data for 24 user-definable characters. The segment current for the LEDs is set by an internal digit-by-digit digital brightness control.
The device includes a low-power shutdown mode, segment blinking (synchronized across multiple drivers, if desired), and a test mode that forces all LEDs on. The LED drivers are slew-rate limited to reduce EMI.
For an SPI™-compatible version, refer to the MAX6952 data sheet. An EV kit is available for the MAX6952. |
| Key Features |
|
Applications/Uses |
- 400kbps 2-Wire Interface Compatible with I²C
- 2.7V to 5.5V Operation
- Drives 4 Monocolor or 2 Bicolor Cathode-Row 5 x 7 Matrix Displays
- Built-In ASCII 104-Character Font
- 24 User-Definable Characters Available
- Automatic Blinking Control for Each Segment
- 70µA Low-Power Shutdown (Data Retained)
- 16-Step Digital Brightness Control
- Display Blanked on Power-Up
- Slew-Rate-Limited Segment Drivers for Lower EMI
- 36-Pin SSOP and 40-Pin DIP Packages
- Extended Temperature Range as Standard
- Underwriters Laboratories (UL®) Recognized
|
|
- Audio/Video Equipment
- Gaming Machines
- Industrial Displays
- Medical Equipment
- Message Boards
|
| Diagram |

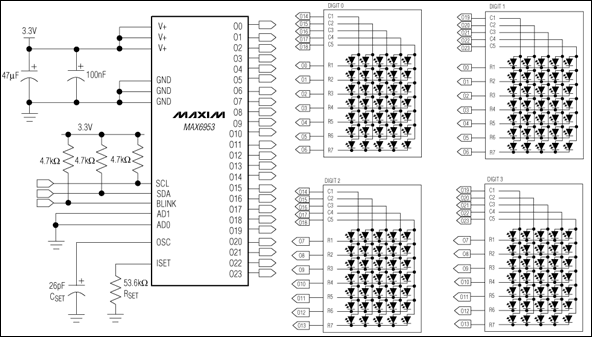

Typical Application Circuit |
