MAX7322

Low Operating Supply Voltage I²C Port Expander with 4 Push-Pull Outputs and 4 Input Ports

Description

FULL DATA SHEET (PDF, 224kB) Download    The MAX7322 2-wire serial-interfaced peripheral features four push-pull outputs and four input ports with selectable internal pullups. Input ports are overvoltage protected to +6V and feature transition detection with interrupt output. The four input ports are continuously monitored for state changes (transition detection). The interrupt is latched, allowing detection of transient changes. Any combination of inputs can be selected using the interrupt mask to assert the open-drain active-low INT output. When the MAX7322 is subsequently accessed through the serial interface, any pending interrupt is cleared. The four push-pull outputs are rated to sink 20mA, and are capable of driving LEDs. The active-low RST input clears the serial interface, terminating any I²C communication to or from the MAX7322. The MAX7322 uses two address inputs with four-level logic to allow 16 I²C slave addresses. The slave address also sets the power-up default logic state for the four output ports, and enables or disables internal 40k¦¸ pullups for the input ports. The MAX7322 is one device in a family of pin-compatible port expanders with a choice of input ports, open-drain I/O ports, and push-pull output ports (see Table 1 in the full datasheet). The MAX7322 is available in 16-pin QSOP and TQFN packages, and is specified over the -40¡ãC to +125¡ãC automotive temperature range.

An evaluation kit is available:  MAX7322EVCMAXQU, MAX7322EVKIT

Diagram

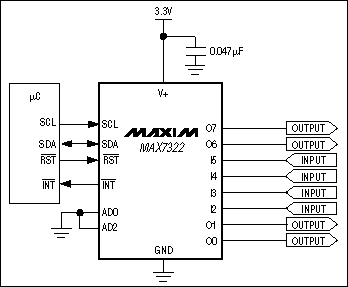

Typical Application Circuit
